Each unit ships new with manufacturer’s warranty.

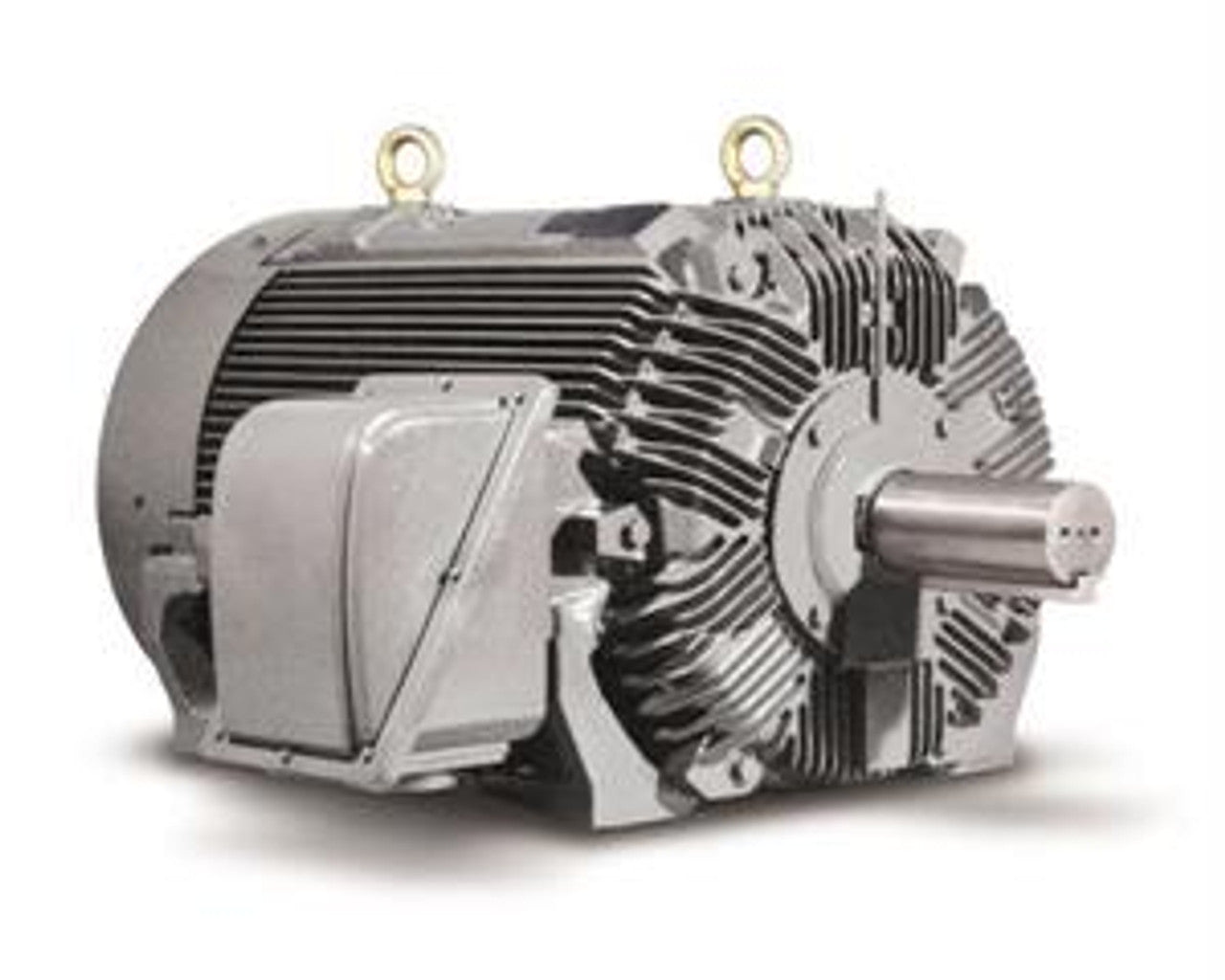

Teco Westinghouse close coupled pump motor for water treatment and other industrial applications.
Features:
-
Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only
-
CSA Certified for Class I, Div. 2, Groups B, C, D
-
CSA Certified for Class II, Div. 2, Groups F & G
-
Class F Insulation
-
Class B Temperature Rise
-
NEMA Design C Torques; Equal or Greater than 200% Starting Torque 250% Breakdown
-
Cast Iron Frame, End Brackets, Main Conduit Box; Rolled Steel Fan Cover
-
Grounding Terminal inside Conduit Box
-
Oversized Conduit Box Rotatable in 90 Degree Increments; F1 Mount
-
Bi-Directional Rotation
-
Automatic Grease Discharge Fittings
-
Suitable for Inverter Use
-
Inverter Duty Speed Range: 20:1 Variable Torque; 10:1 Constant Torque
-
12 Leads for 125HP and Smaller
-
6 Leads for 150HP and Larger
-
Standard with Thermistors
-
Locknut & Washer on NDE for Vertical Shaft Down Applications on Frames 440 and Larger
-
Drain Holes / Plugs on Both End Brackets for Vertical Mount Applications
-
Threaded One Way Breather Drains for Horizontal Mount Applications
