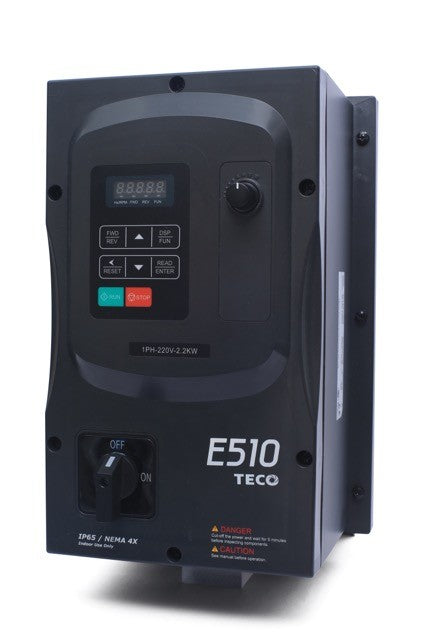

* Image is for reference only

E510-208-H3-U Teco-Westinghouse VFD Drive 7.5hp 230V 3 Phase

SKU: E510-208-H3-U
$639.01
Sale $639.01
Description

Features

  • E510 MEDIUM DUTY COMPACT DRIVE
  • Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
  • Simple PLC Function Built-in
  • Advanced Regenerative Load Handling Capability
  • Conformal Coating on PC Boards
  • LCD Keypad that is remotely mountable
  • Flexible Input/ Output Configurations that accept Normally Open or Normally Closed Signals
  • 0 to 400 Hz Speed Range (0-1200Hz selectable)
  • PID Control
  • Diagnostics Registers for Troubleshooting
  • Built-in Modbus protocol via (RS485 or RJ45 interface)
  • Pulse Output and Pulse Follower
  • Select Between Closed Loop Speed and Torque Control in Vector Mode
  • 1-40HP Nema 1 230V 50HP & above Protectected Chasis, 1-60HP Nema 1 460V & 75HP and above Protected Chassis
  • UL, cUL, and CE Approved
