Home » PEWWE15-18-254TZ-GD Worldwide Motor 15HP 1800RPM 254TZ TEFC 230/460V 3 Phase
PEWWE-TZ-GD Worldwide Motor

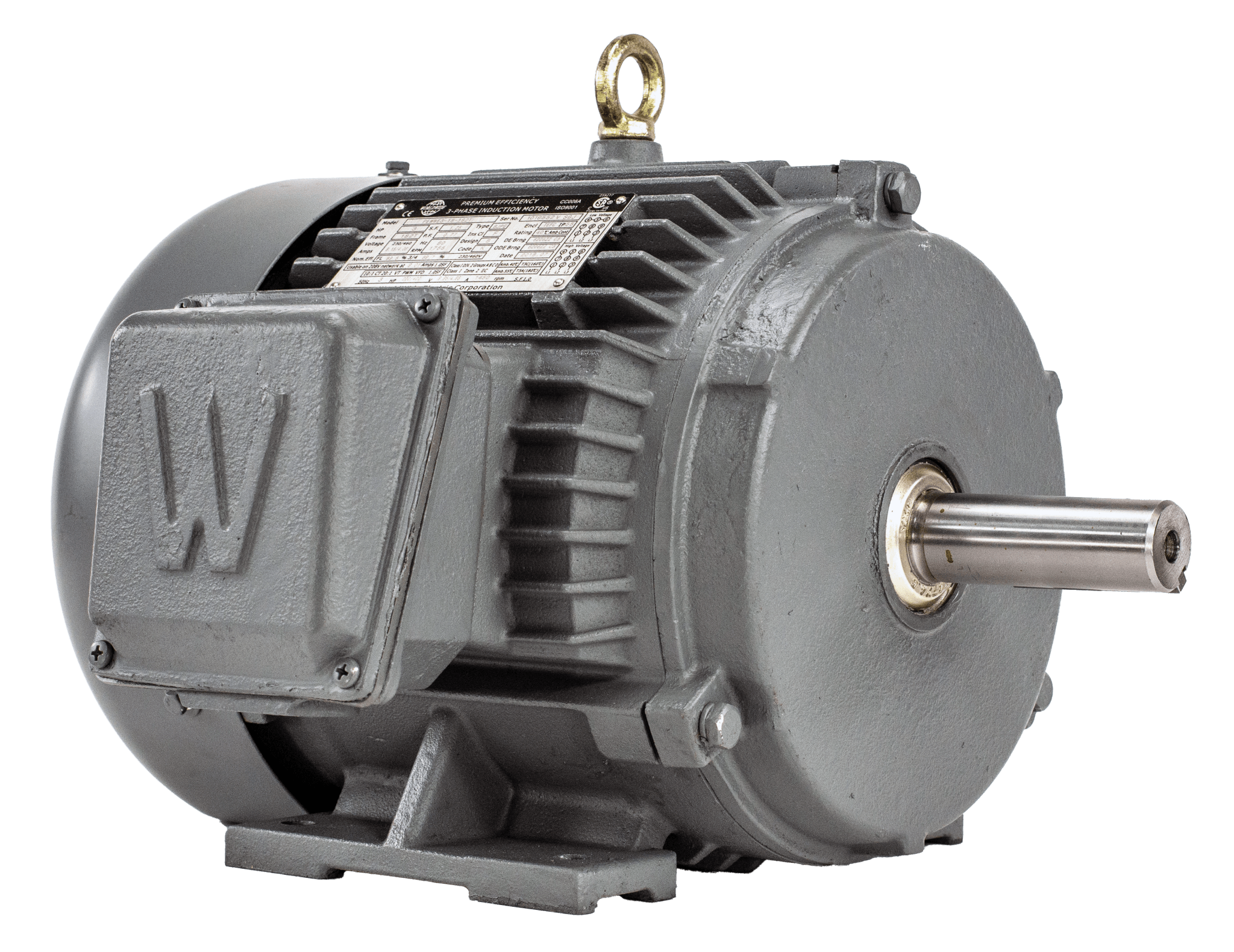

PEWWE15-18-254TZ-GD Worldwide Motor 15HP 1800RPM 254TZ TEFC 230/460V 3 Phase

SKU: PEWWE15-18-254TZ-GD
$2,551.78
$3,314.00 Sale $2,551.78

Product details

  • SKU PEWWE15-18-254TZ-GD
  • Brand Worldwide
  • Phase 3
  • RPM 1201-1800
  • HP / KW 15
  • Application Grain Dryer
  • Frame 254 & 256
  • Enclosure TOTALLY ENCLOSED
  • Voltage 230/460

Share

Description Reviews

Product Specifications

  • 15 HP
  • 1800 RPM
  • Three-Phase
  • 230/460 Volt, 60 Hz
  • Totally Enclosed Fan Cooled (TEFC) Enclosure
  • IP55 Protection
  • 1.25 SF
  • Class F Insulation
  • Rigid Base
  • NEMA Premium Efficiency
  • 1" Longer Shafter Than Standard T-Frame
  • 72" Long Leads
  • Oil Seal on Drive-End and Opposite Drive-End
  • Vacuum Pressure Impregnation (VPI) System
  • Double Shielded Ball Bearings on all Ratings
  • Inverted Duty, 10:1 CT / 20:1 VT at 1.0 SF
  • Class 1, Division 2, Group A, B, C, D
