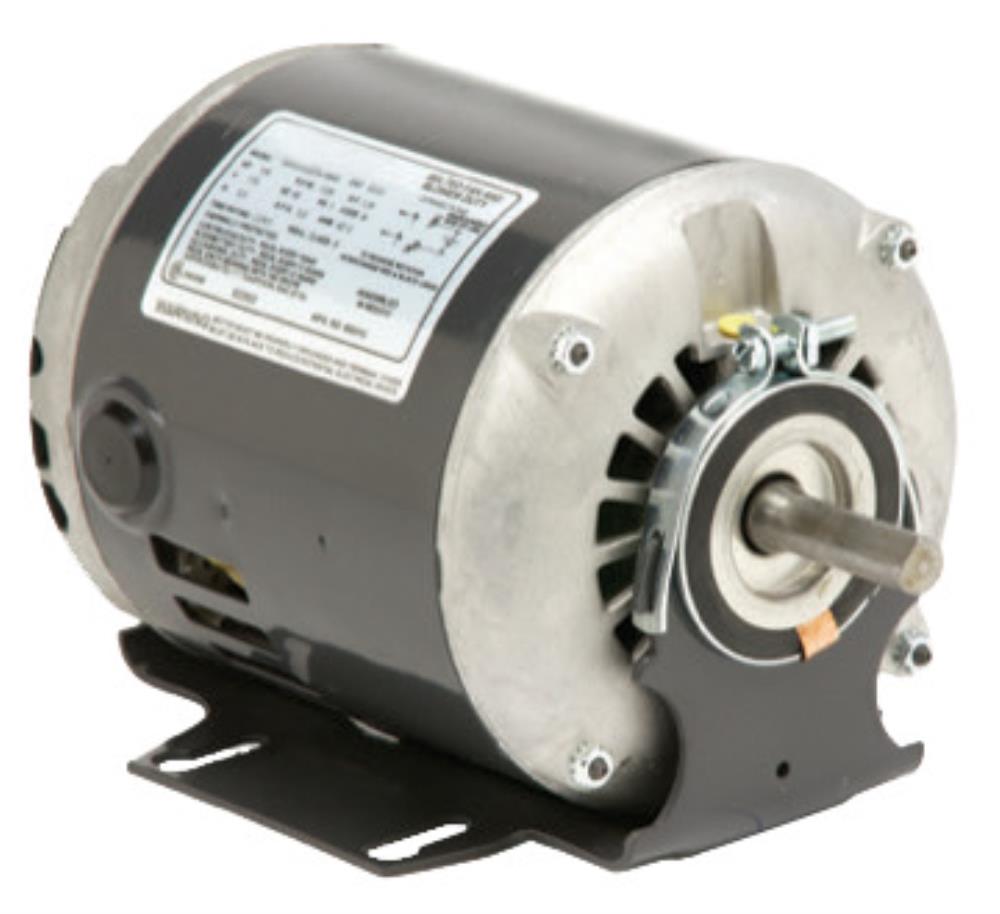

PD6002 US Motor 1/4HP 1725RPM 48 OPEN 115/230 Volt 1 Phase

SKU: PD6002
$192.50
Sale $192.50
Description

Description

Electrical Type: Split Phase | HP: 1/4 | KW: 0.2 | Stack: 1.75 in | RPM: 1725 | Frame: 48Z | Voltage: 115/208-230 | Rotation: CCW | Overload Protection: Auto | Speeds: 1 | Bearings: Ball | Amperage: 5.2/2.5-2.6 & 5.8/3.0-2.9 | Service Factor: 1.35 | Mounting Type: Resilient | Frequency: 60 Hz
Features
  • Ambient Temperature:
    40C
  • Insulation Class:
    B
  • Poles:
    4
  • Breakdown Torque:
    37.59 OZFT
  • Locked Rotor Torque:
    13.51 OZFT
  • Stator Diameter:
    5.5 in
Specifications
Electrical Type Split Phase
HP 1/4
KW 0.2
Stack 1.75 in
RPM 1725
Frame 48Z
Voltage 115/208-230
Rotation CCW
Overload Protection Auto
Speeds 1
Bearings Ball
Amperage 5.2/2.5-2.6 & 5.8/3.0-2.9
Service Factor 1.35
Mounting Type Resilient
Frequency 60 Hz
Shipping
Length 16.00
Width 12.00
Height 12.00
Cross Reference
Weight 25.00
Emerson S55JNC8244 | S55NPM-7247
Fasco 7125-0390
Ge 5KH32FN3120X | 5KH33FN15
Marathon 48S17D1298
