Home » OJ12-36-56JRD Worldwide Motor 1/2HP 3600 56J TEFC 115/230V 1 Phase
OJ -36-56 Worldwide Motor

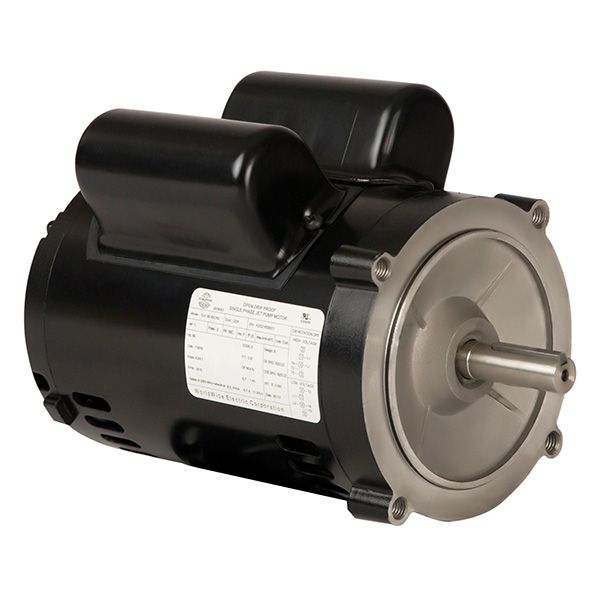

OJ12-36-56JRD Worldwide Motor 1/2HP 3600 56J TEFC 115/230V 1 Phase

SKU: OJ12-36-56JRD
$318.70
$413.89 Sale $318.70

Product details

  • SKU OJ12-36-56JRD
  • Brand Worldwide
  • Phase 1
  • RPM 1801-3600
  • HP / KW 1/2 (.5)
  • Application Pool & Spa / Jet Pump
  • Frame 56J
  • Enclosure OPEN
  • Voltage 115/230V
  • Flange C-Face Footed

Share

Description Reviews

Product Specifications

  • Open Drip Proof (ODP) Enclosure
  • IP23 Protection
  • Class F Insulation
  • C-Face with Removable Base (CB / JB) and C-Face Round Body Footless (CRD / JRD)
  • 56J - Threaded Shaft ODE Shaft Supplied with Slot for Installation
  • 56C - Keyed Shaft
  • 304 Stainless Steel Shaft End
  • Vacuum Pressure Impregnation (VPI) System
  • Anti-Rust Film Applied to Rotor
  • Drive-End Shaft Slinger
  • Double Shielded Ball Bearings
  • Premium Efficiency per Small Motor Rule

Single Phase Specifications

  • 1/3 - 3 HP
  • 115/230 Volt Usable at 208 Volt
  • Capacitor Start / Capacitor Run
  • Automatic Thermal Overload Protection
  • Terminal Board with Spade Connectors
