Home » ODPJ1.5-36-56CRD Worldwide Motor 1.5HP 3600 56C TEFC 230/460V 3 Phase
OJ -36-56 Worldwide Motor

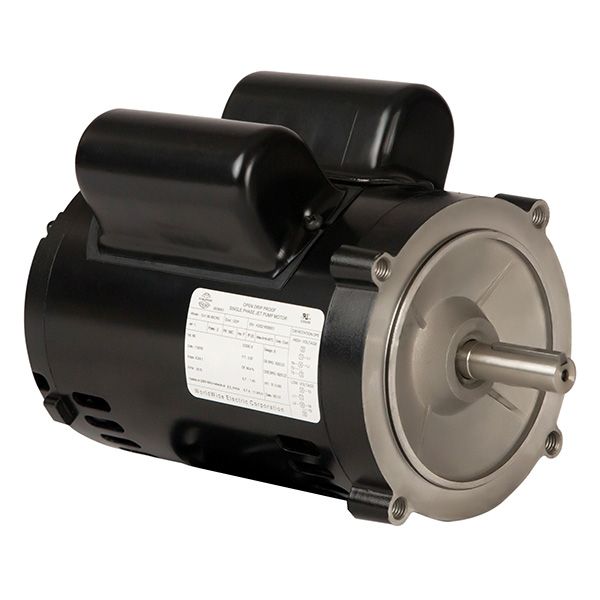

ODPJ1.5-36-56CRD Worldwide Motor 1.5HP 3600 56C TEFC 230/460V 3 Phase

SKU: ODPJ1.5-36-56CRD
$427.01
$554.56 Sale $427.01

Product details

  • SKU ODPJ1.5-36-56CRD
  • Brand Worldwide
  • Phase 3
  • RPM 1801-3600
  • HP / KW 1.5
  • Application Pool & Spa / Jet Pump
  • Frame 56C
  • Enclosure OPEN
  • Voltage 230/460V
  • Flange C-Face Footed

Share

Description Reviews

Product Specifications

  • Open Drip Proof (ODP) Enclosure
  • IP23 Protection
  • Class F Insulation
  • C-Face with Removable Base (CB / JB) and C-Face Round Body Footless (CRD / JRD)
  • 56J - Threaded Shaft ODE Shaft Supplied with Slot for Installation
  • 56C - Keyed Shaft
  • 304 Stainless Steel Shaft End
  • Vacuum Pressure Impregnation (VPI) System
  • Anti-Rust Film Applied to Rotor
  • Drive-End Shaft Slinger
  • Double Shielded Ball Bearings
  • Premium Efficiency per Small Motor Rule

Three Phase Specifications

  • 1/3 - 5HP
  • 230/460 Volt, Usable at 208 Volt (Preconfigured for 460 Volt from Factory)
  • Stud Terminals for Use with Ring or Fork Terminals
  • Supplied with Terminal Plug in Terminal Box for Switching from 230 to 460 Volt and Vice-Versa
