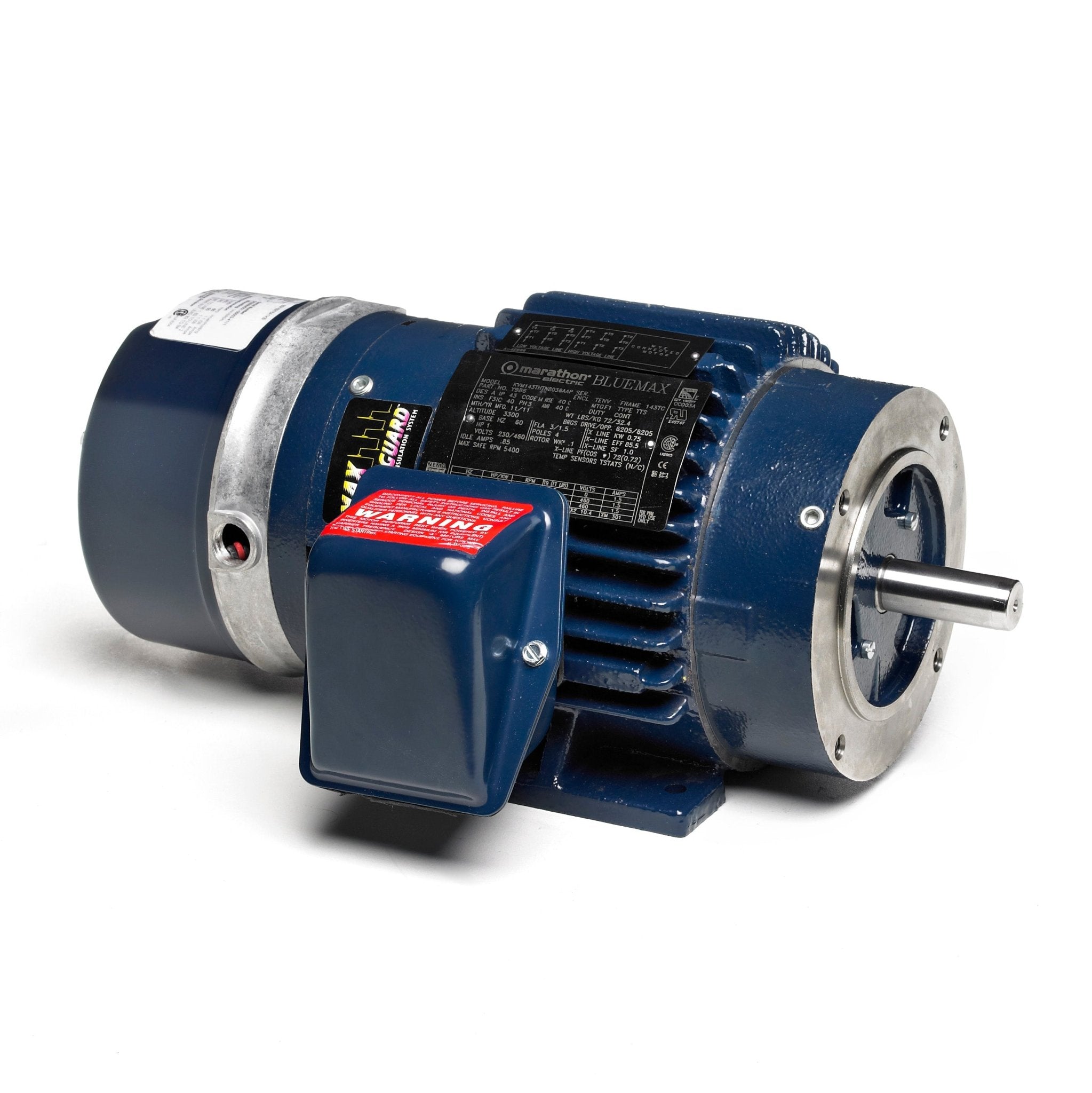

Y993 Marathon Brake Motor 20HP 1800RPM 256TC TENV 230/460V 3 Phase

SKU: Y993

$9,161.60

~~$14,315.00~~ Sale $9,161.60

Description

MAX GUARD® Class F insulation system
Constant torque operation from 0 to base speed on vector drive
Constant Horsepower operation up to twice base RPM
Optimized for operation with IGBT inverter (NEMA Design A)
Normally closed thermostats (one per phase, Class F)
Will accept encoder through Mod Central (see mod 24 for encoder mounting)
Stearns brakes, 87 series
Includes 140% rated spring-set self-adjusting NEMA 2 disk brake (Brake coil voltage matches motor)
