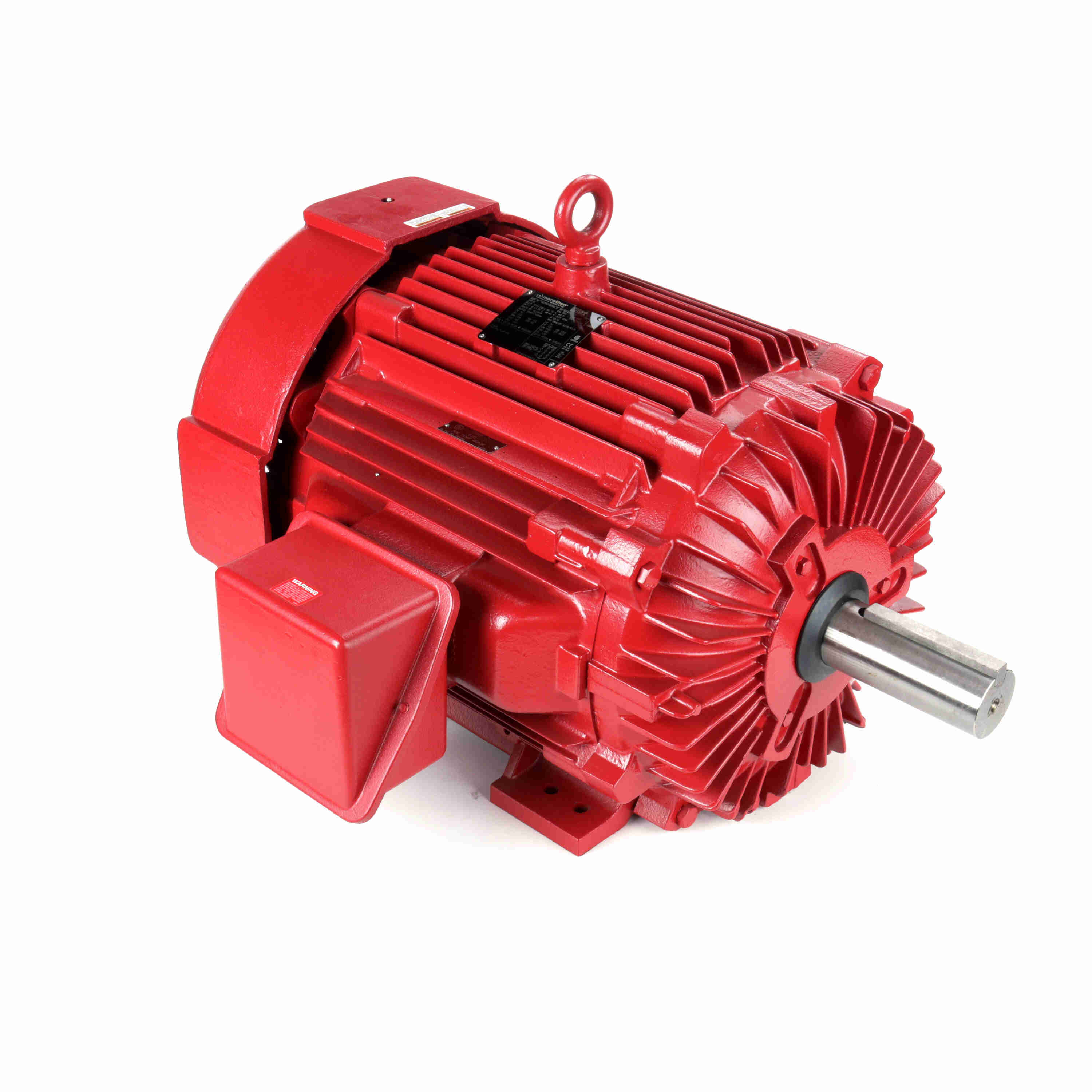

* Image is for reference only

Y1618 Marathon Motor 40HP 1800RPM 324T TEFC 230/460V 3 Phase

SKU: Y1618
$4,014.08
Sale $4,014.08
Description

Replaces Marathon # M905

Model Number: 324TTFPA14071

  • Designed for use on pumps for fire pump duty
  • UL file EX5190, CSA file LR2025 and CE mark
  • Red paint exterior
  • NEMA Design B, Code G or less
  • Motor will accept a C-face kit
  • Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start
  • Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage
  • Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
