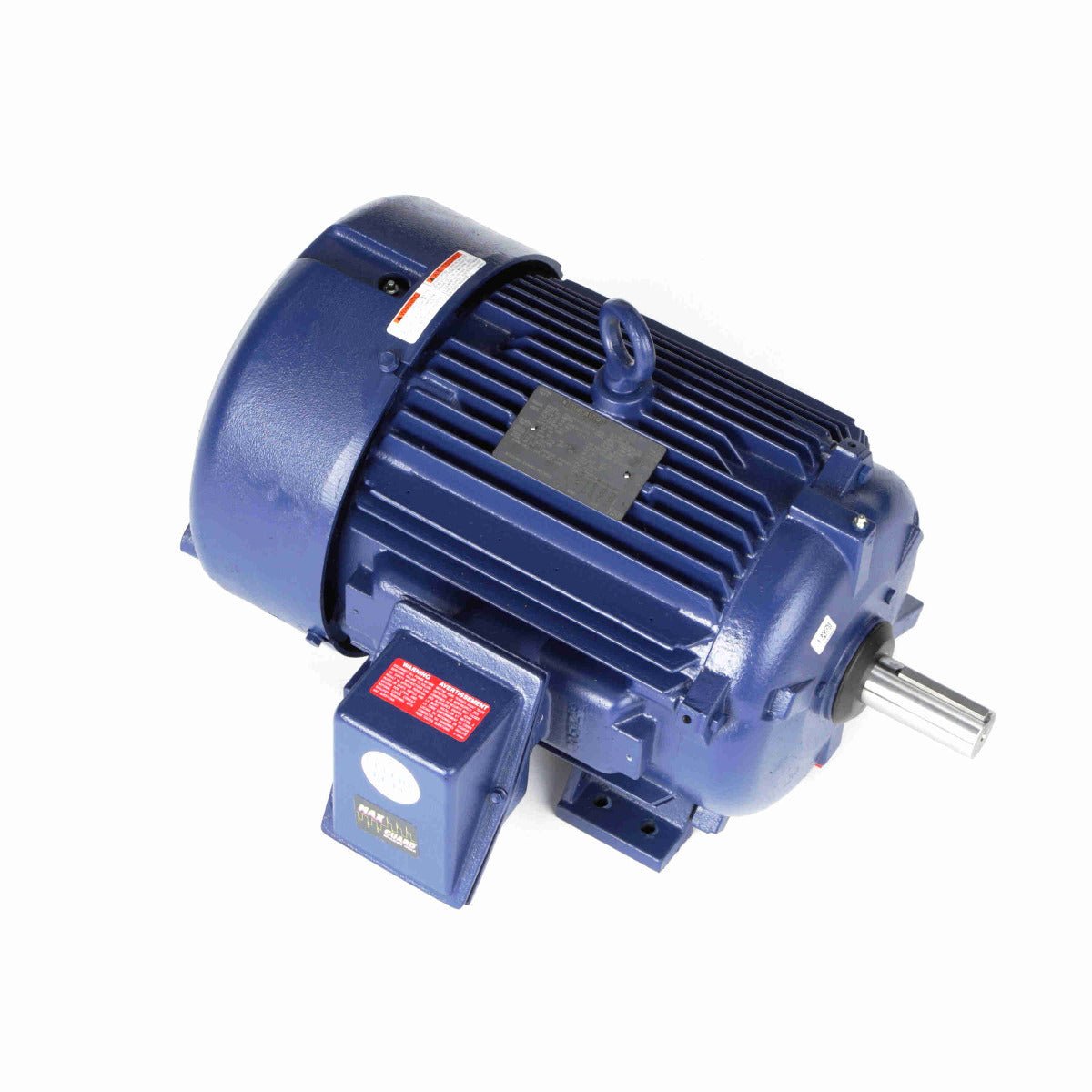

U872B Marathon Motor 20HP 1800RPM 256T TEFC 230/460Volt 3 Phase 256TTFCD16574AB

Name: U872B Marathon Motor 20HP 1800RPM 256T TEFC 230/460Volt 3 Phase 256TTFCD16574AB
Brand: Marathon
SKU: U872B
Price: 2911.36 USD
Availability: InStock

SKU: U872B

$2,911.36

Sale $2,911.36

Description

Description

This item replaces Marathon U872A
Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
IP55 enclosure on cast iron frames
Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
Class F Insulation 40C Max Ambient, 1.0SF on Inveter Power and 1.15SF on Sine Wave Power
Standard F1, reversible to F2 assembly. Dual frame mounting holes.
C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
UL® Recognized & CSA certified and CE® Mark
