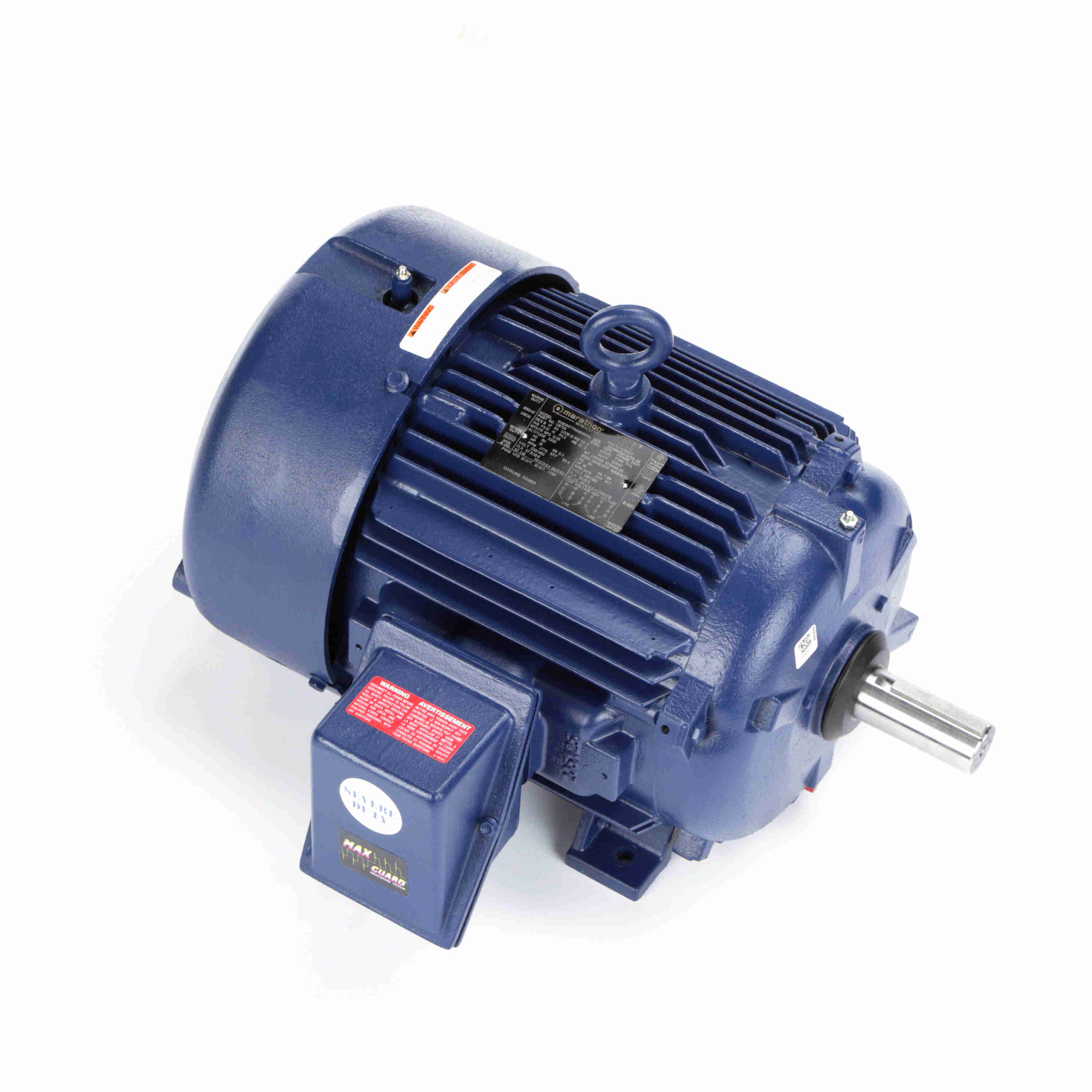

U871B Marathon Motor 15HP 1800RPM 254T TEFC 230/460V 3 Phase 254TTFCD16568AB

Name: U871B Marathon Motor 15HP 1800RPM 254T TEFC 230/460V 3 Phase 254TTFCD16568AB
Brand: Marathon
SKU: U871B
Price: 1708.80 USD
Availability: InStock

SKU: U871B

$1,708.80

Sale $1,708.80

Description

Description

This item replaces Marathon U871A
Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
IP55 enclosure on cast iron frames
Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
Class F Insulation 40C Max Ambient, 1.0SF on Inveter Power and 1.15SF on Sine Wave Power
Standard F1, reversible to F2 assembly. Dual frame mounting holes.
C-face addition may result in non-NEMA "BA" dim. For new "BA" dim consult chart found in modification section
Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
UL® Recognized & CSA certified and CE® Mark
