U063C Marathon Motor 10HP 3600RPM 215T EPFC 230/460V 3 Phase 215TTGCD6501AA - Square One Electric Motors & Pumps

* Image is for reference only

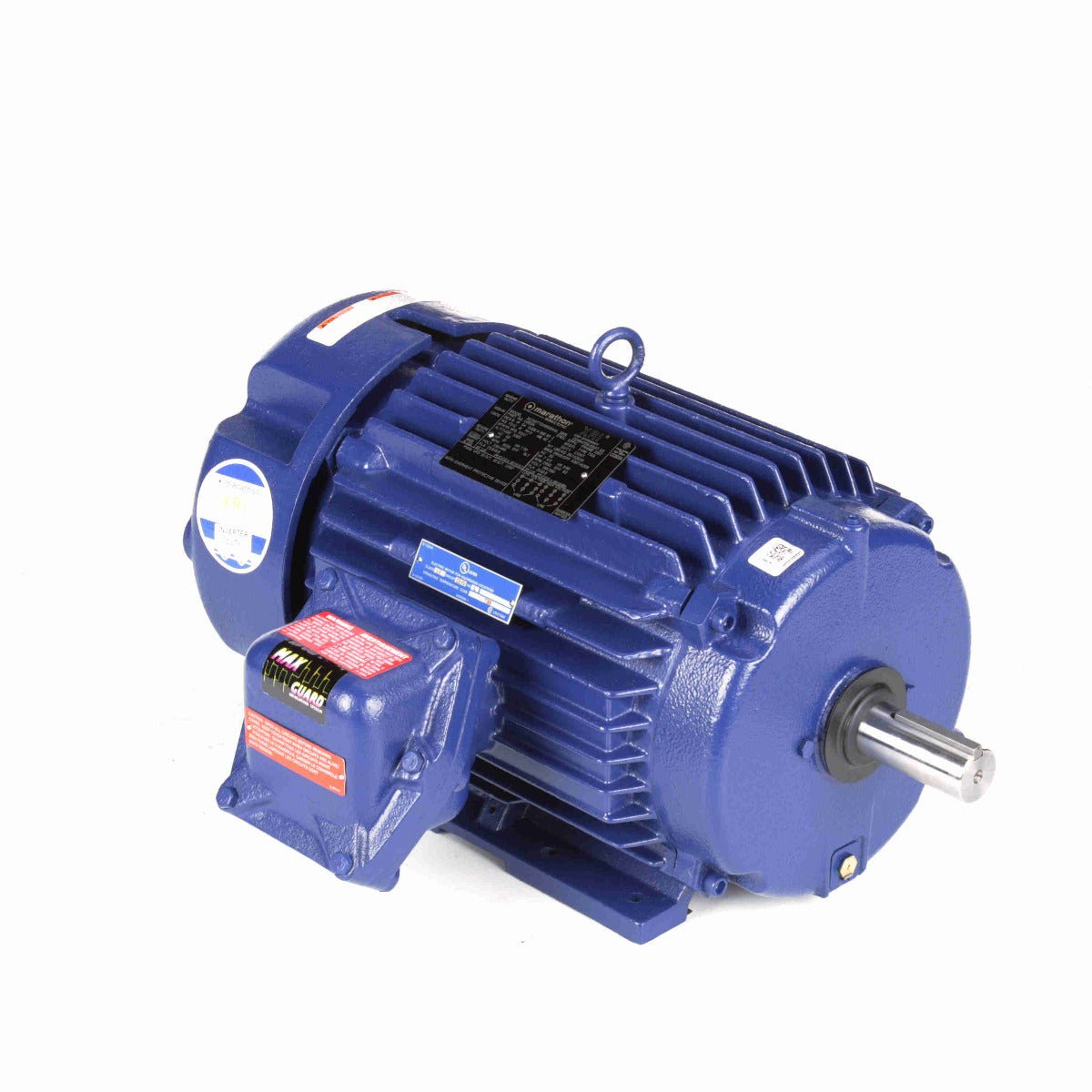

U063C Marathon Motor 10HP 3600RPM 215T EPFC 230/460V 3 Phase 215TTGCD6501AA

SKU: U063C
$2,145.28
Sale $2,145.28
Description
  • This item replaces Marathon U063A
  • This item replaces Leeson 825090.00
  • Meets NEMA Premium® efficiency; Hazardous Duty®, 100% cast iron construction for rigidity and reduced vibration; Internal and external epoxy paint
  • Nameplated 60/50 Hz, 190/380 Volts, at next lower HP
  • MAX GUARD® Class F insulation system, 40C Max Ambient, 1.0SF on Inverter Power and 1.15SF on Sine Wave Power
  • Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
  • Precision balanced to .08”/sec, Extended grease tubes
  • Normally closed thermostats (must be connected to control circuit)
  • Division 1 Explosion Proof Class 1 Groups C&D Class II, Groups F & G, Groups F & G Meets temperature code T3B
  • Shaft slinger, Ball Bearings (except as noted), Modifications and Accessories are available
  • UL® Listed & CSA certified and CE® Mark
