Home » U006C Marathon Motor 7.5HP 1800RPM 213T EPFC 208-230/460V 3 Phase 213TTGCD6526BA
U006C Marathon Motor

* Image is for reference only

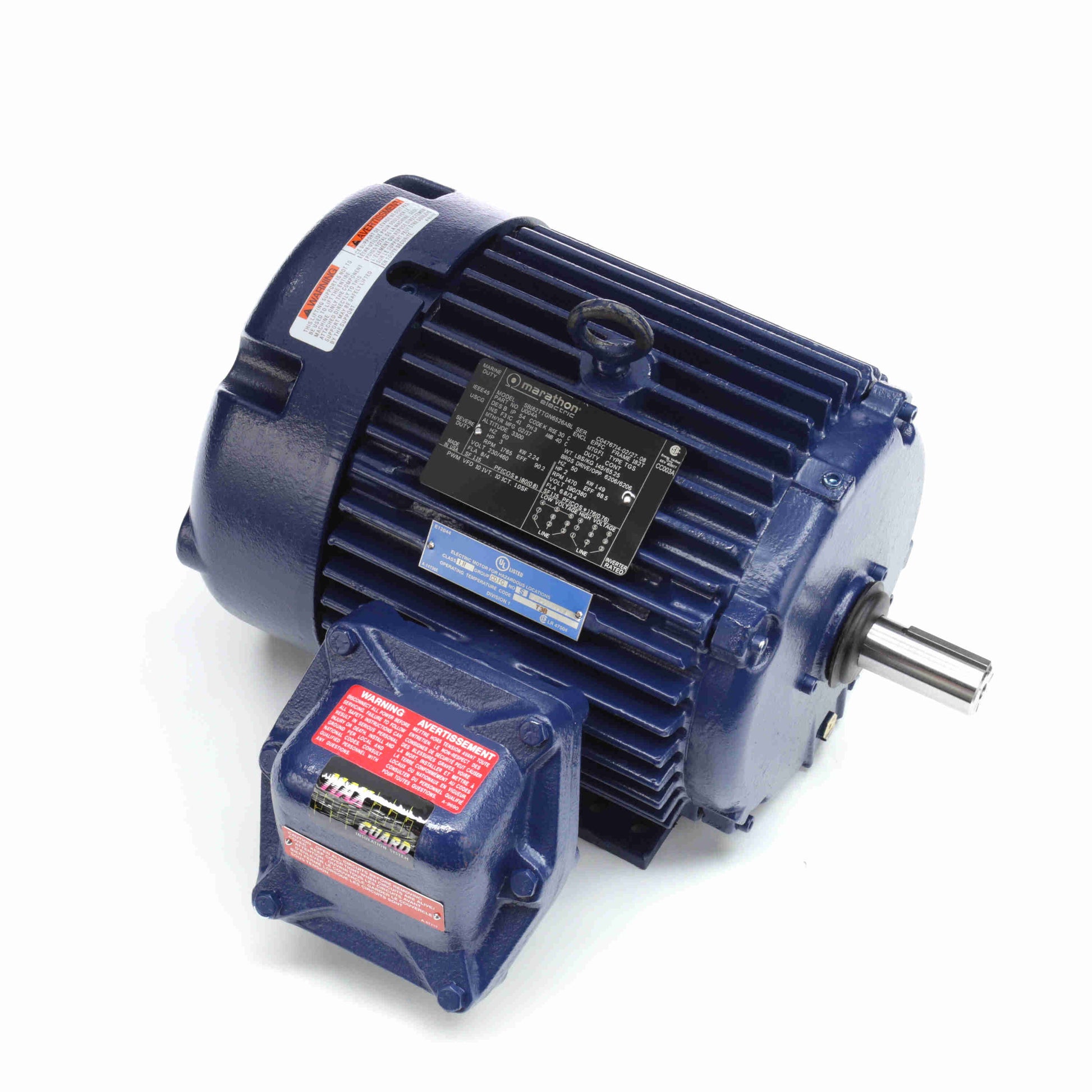

U006C Marathon Motor 7.5HP 1800RPM 213T EPFC 208-230/460V 3 Phase 213TTGCD6526BA

SKU: U006C
$1,791.36
$2,799.00 Sale $1,791.36
  • This item replaces Marathon U006B / U991A
  • This item replaces Leeson 825089.00
  • Meets NEMA Premium® efficiency; Hazardous Duty®, 100% cast iron construction for rigidity and reduced vibration; Internal and external epoxy paint
  • Nameplated 60/50 Hz, 190/380 Volts, at next lower HP
  • MAX GUARD® Class F insulation system, 40C Max Ambient, 1.0SF on Inverter Power and 1.15SF on Sine Wave Power
  • Inverter Duty 10:1 Variable Torque and 10:1 Constant Torque
  • Precision balanced to .08”/sec, Extended grease tubes
  • Normally closed thermostats (must be connected to control circuit)
  • Division 1 Explosion Proof Class 1 Groups C&D Class II, Groups F & G, Groups F & G Meets temperature code T3C
  • Shaft slinger, Ball Bearings (except as noted), Modifications and Accessories are available
  • UL® Listed & CSA certified and CE® Mark
