Model# 184TTTN

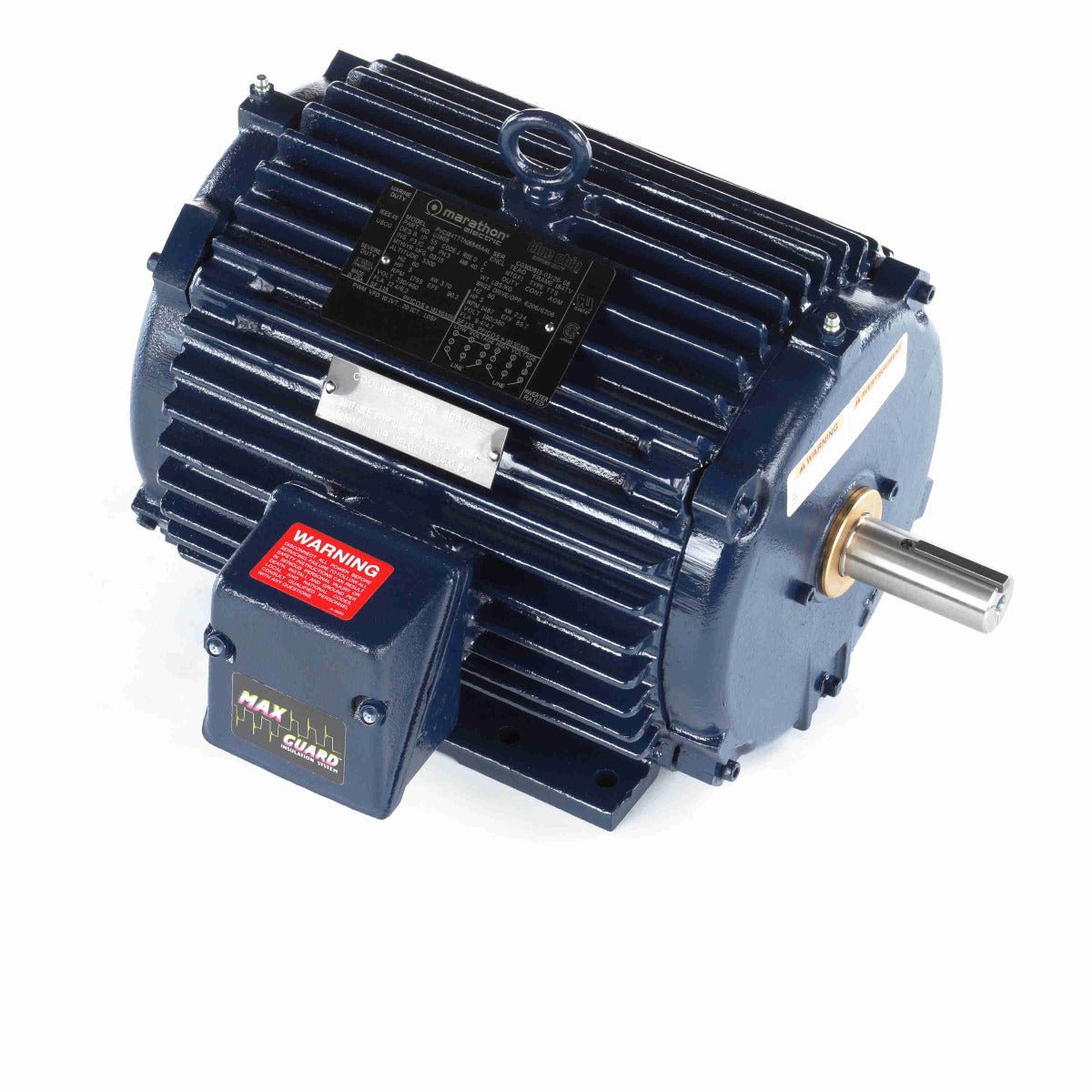

Marathon Motor U1868 is a premium efficient cooling tower motor designed and built by one of the world’s leading electric motor manufacturers.
This single speed, rigid base, TEAO (totally enclosed air over) unit can be mounted in both horizontal and vertical positions. Each motor comes brand new from the Marathon factory with a three year warranty.
More features include:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Blue Chip® quality, 100% cast iron construction for rigidity and reduced vibration
- Internal and external epoxy paint
- MAX GUARD® Class F insulation system
- 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
- Extended grease tubes, Regreasable in service
- T-drains provided for effective drainage (Installed in both endshields)
- Suitable for all angle mounting
- Suitable for 20:1 VT and 20:1 CT on VFD
