Home » U1867A Marathon Motor 3HP 1800RPM 182T TEFC 230/460V 3 Phase 182TTTCD16571AA
U1867A Marathon Motor 3HP 1800RPM 182T TEFC 230/460V 3 Phase 182TTTCD16571AA - Square One Electric Motors & Pumps

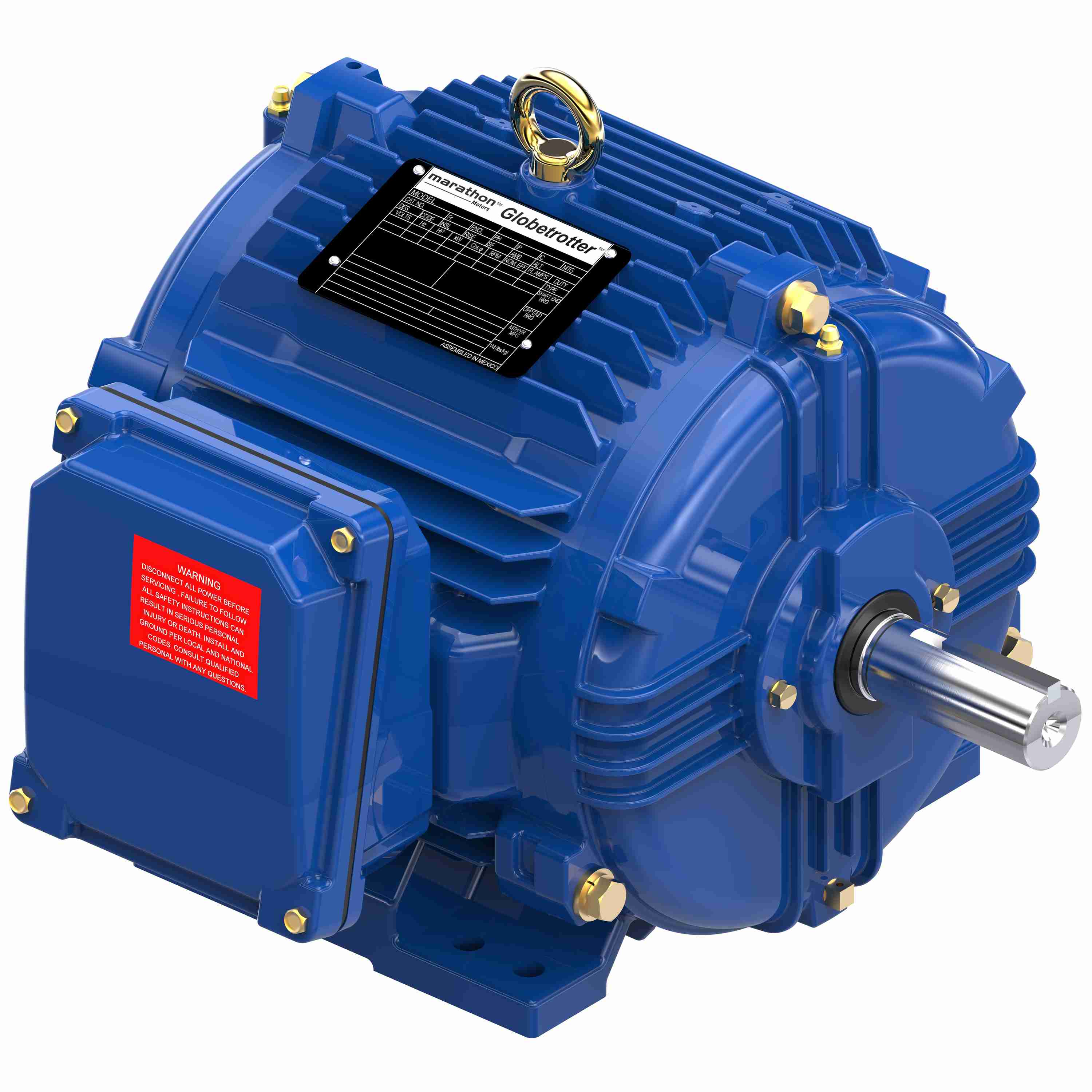

* Image is for reference only

U1867A Marathon Motor 3HP 1800RPM 182T TEFC 230/460V 3 Phase 182TTTCD16571AA

SKU: U1867A
$1,825.28
Sale $1,825.28
Description
  • This item replaces Marathon U1867
  • IP-56 cast iron, Severe Duty, Meets or exceeds NEMA Premium®* efficiencies, NEMA Premium models are in compliance with EISA2008
  • Class H Insulation System, Inverter duty 10:1 variable torque and 10:1 constant torque & 1.15 service factor on Sine Wave Power 1.0 SF on Inverter Power
  • F1/F2 capable, Dynamically balanced rotors, Cast Iron conduit box
  • Dual Frame Mounting
  • Modifications and Kits are available
  • 40°C Ambient 1.15SF Sine Wave Power and 1.0SF inverter power
  • Plastic T Drains on both ends, Grease Fittings With Pipe Plugs on both ends
  • Shaft Grounding Ring (SGR), Bearing Current Protection (BCP)™ Bearing caps, Precision balanced to .08”/sec
  • Inpro/Seal® VBX® bearing isolators and slinger on drive end
  • UL®* listed, UL certified for Canada and CE®* mark
