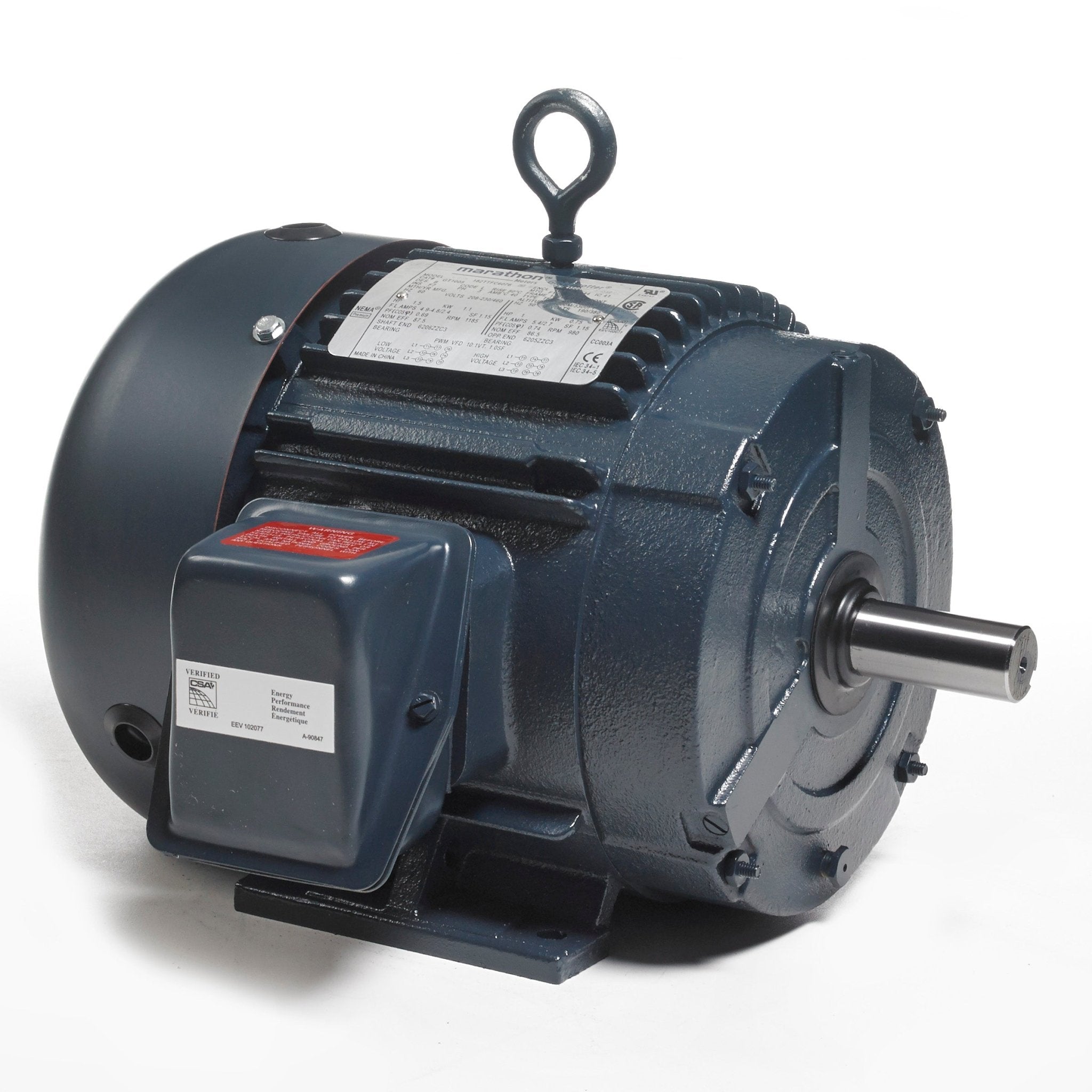

GT1012A Marathon Motor 5HP 3600RPM 184T TEFC 230/460V 3PH 184TTFCD6001

In stock
SKU: GT1012A
Regular price $577.92
Regular price $902.00 Sale Sale price $577.92

Product details

  • SKU GT1012A
  • GTIN 722856064097
  • Brand Marathon
  • Phase 3
  • RPM 1801-3600
  • HP / KW 5
  • Application General Purpose
  • Frame 182/4T
  • Voltage 208-230/460V

Replaces Marathon # U613 | U613A | E217

Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium Efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
  • Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
  • IP55 enclosure on cast iron frames
  • Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
  • Class F Insulation
  • Standard F1, reversible to F2 assembly. Dual frame mounting holes.
