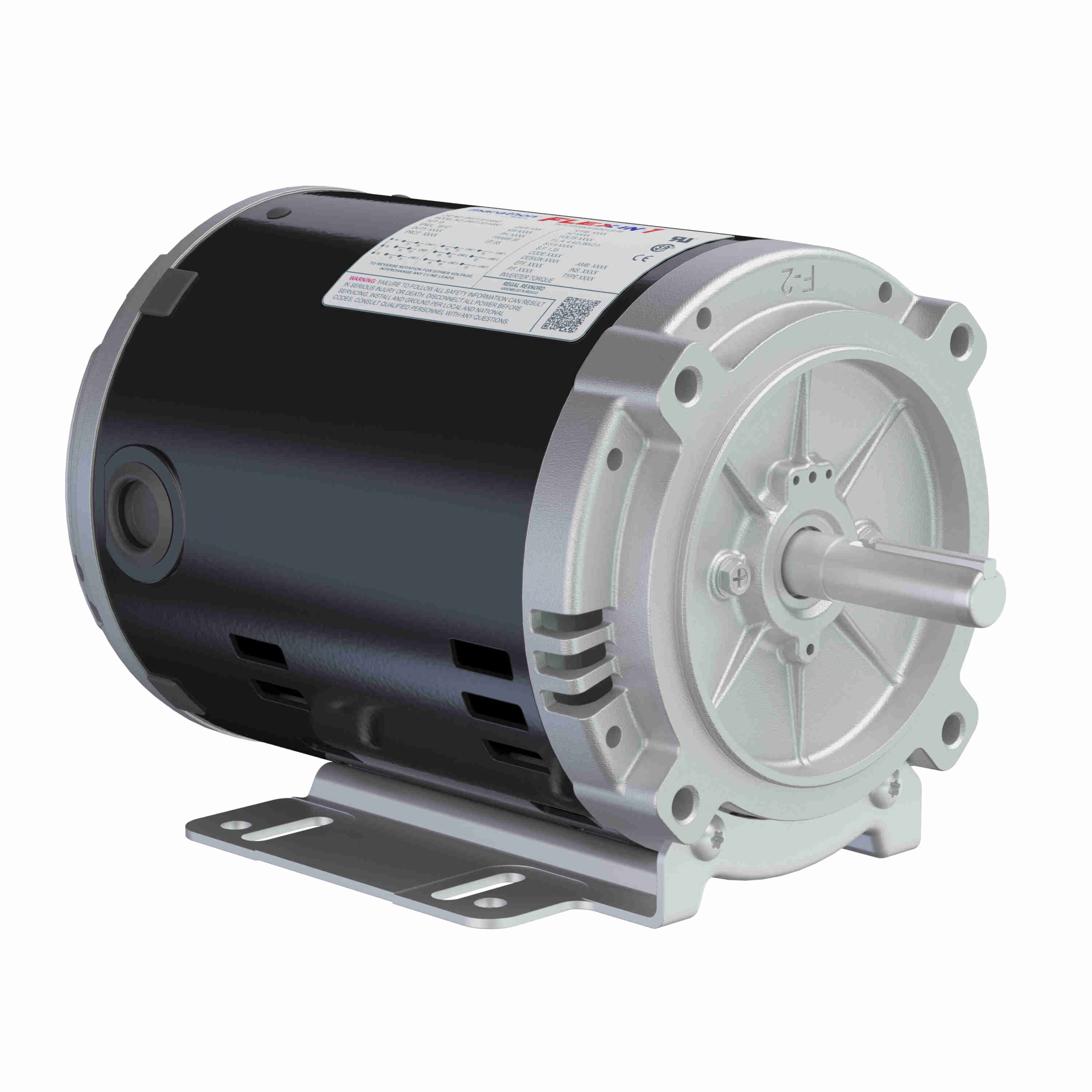

* Image is for reference only

FX13BK001 Marathon Oil Burner Motor 1/3HP 3450RPM 56C DP 208-230/460V 3 Phase 56T34D15643A

SKU: FX13BK001
$368.00
Sale $368.00
Description
  • This item replaces Marathon KG215
  • This item replaces Leeson E100375.00
  • This motor replaces Century H251ES
  • One FLEX-IN-1™ motor replaces 18 general purpose motors
  • The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
  • Out-of-the-box motor with provisions for multiple kits*** - Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
  • Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP
  • Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
  • *** Kits sold separately. Light assembly required.
