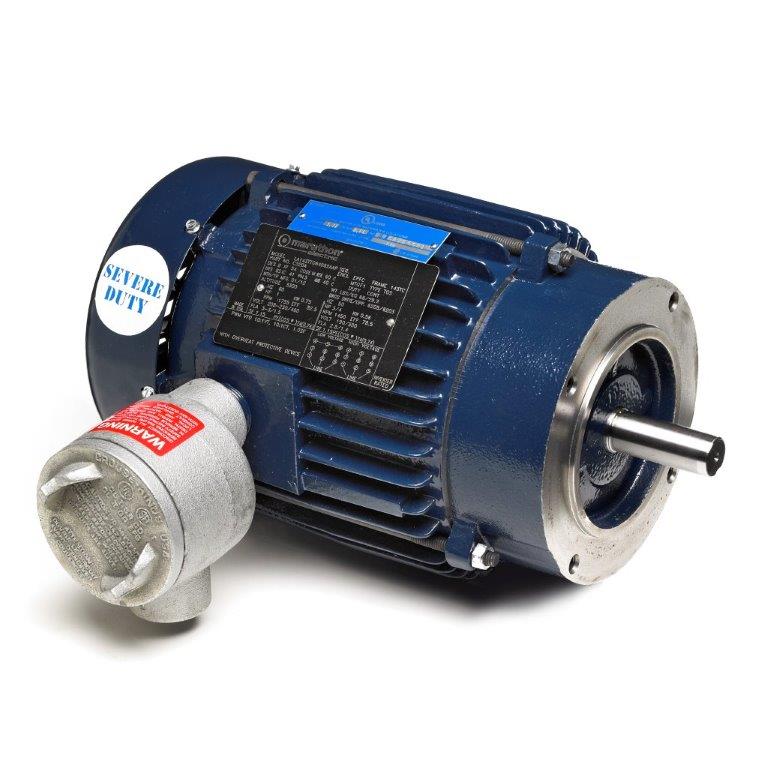

C306B Marathon Motor 10HP 3600 3PH 215TC
Manuf. Model Number: 215TTGS14020
Marathon's Hazardous Duty XP motors are ideal for a wide variety of applications where hazardous fumes or dust may be present.
- Frame Construction:56 Frame-Rolled Steel.143-256TC-Cast Iron “Blue Chip”
- Thermal Protection:56 Frame-Auto Overload,143-256TC-T-Stats
- Class/Group:56 Frame-Class I, Groups C & D,143-256TC-Class I, Group D
- Temperature Code:56 Frame-T3B;143-256TC-T3B
- Conduit Box:56 Frame-Shipped Loose;143-256TC-Installed
- Service Factor:56 Frame-1.0 (unless otherwise noted);143-256TC-1.0 (unless otherwise noted)
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
