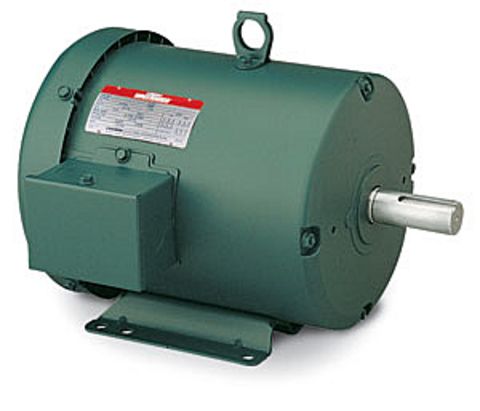

LM32803 Lincoln Motor 5HP 900RPM 254T TEFC 230/460V 3 Phase AF8P5T61
LM32803 Lincoln Motor 5HP 900RPM 254T TEFC 230/460V 3 Phase AF8P5T61
In stock
Regular price
$2,080.80
Regular price
$3,468.00
Sale
Sale price
$2,080.80
Couldn't load pickup availability
Product details
- SKU LM32803
- GTIN 691720020920
- Brand Lincoln
- Phase 3
- RPM 600-900
- HP / KW 5
- Application General Purpose
- Frame 254/6T
- Enclosure TOTALLY ENCLOSED
- Voltage 208-230/460V
Lincoln Model # AF8P5T61
LM32803 Lincoln three phase premium efficient electric motors are well made with an alumiunum body and quality ball bearings that last. Lincoln totally enclosed electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- Meets or exceeds NEMA motor energy regulations
- Made in the USA
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
Engineering Data | |||||
Volts | 230 | Volts | 460 | Volts | |
F.L. Amps | 15 | F.L. Amps | 7.5 | F.L. Amps | |
S. F Amps | 17 | S. F Amps | 8.5 | S. F Amps | |
RPM | 900 | Hertz | 60 | ||
HP | 5 | Duty | CONTINUOUS | TYPE | TFL |
KW | 3.7 | ||||
Frame | 254T | Serv. Factor | 1.15 | Phase | 3 |
Max Amb | 40 | Design | B | Code | F |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 87.5 | Eff 75% | PF | 73 | |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 208 |
CC Number | CC004A | CE | Yes | Bearing PE | 309 |
Load Type | Inverter Type | Speed Range | NONE | ||
Motor Wt. | 187 LB | Enclosure | TEFC | Lubrication | VERIFY |
Nameplate | Mounting | RIGID | Rotation | REV | |
Assembly | Shaft Dia. | Ext. Diag. | A-EE7308-LN | ||
Cust Part No | Outline | B-SS321100LN-1200 | Ext. Diag2 | ||
Packaging | B | Winding | K254828 | ||
Carton Label | GROUP: | 1 | |||
Iris | Paint | GRAY - LINCOLN | Test Card |
