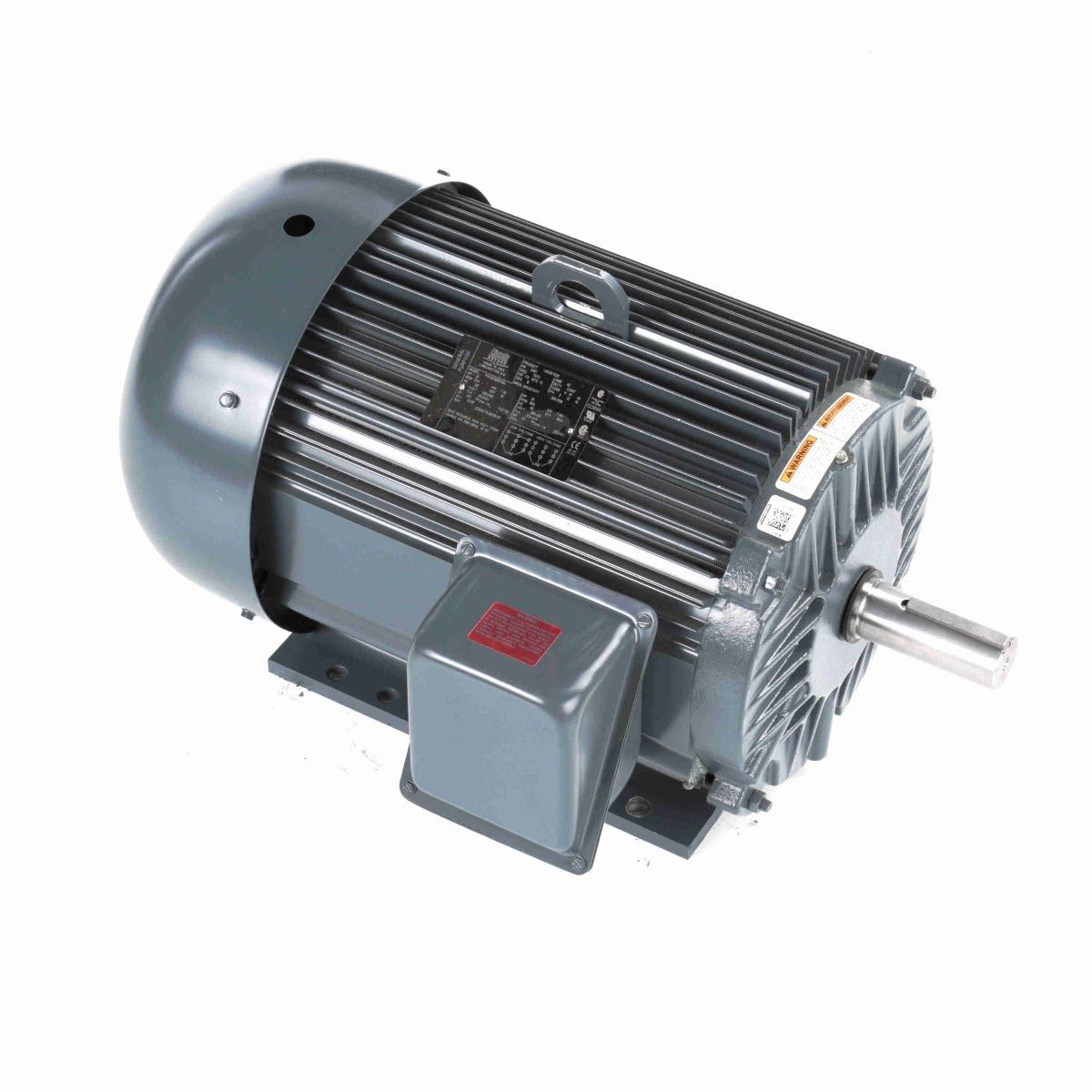

Lincoln Model # AF6B10T61
LM15675 Lincoln three phase electric motors are well made with an aluminum body and Made in the USA. Lincoln three phase general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- This item replaces Marathon W841
- Meets or exceeds NEMA motor energy regulations
- Class F insulation
- UL Recognized Component Listing and CSA approval
- Shielded ball bearings
- 3 year factory warranty
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
380-415 |
| F.L. Amps |
26.2 |
F.L. Amps |
13.1 |
F.L. Amps |
15.5-14.5 |
| S. F Amps |
32 |
S. F Amps |
16 |
S. F Amps |
|
|
| RPM |
1200 |
Hertz |
60 |
|
|
| HP |
10 |
Duty |
CONTINUOUS |
TYPE |
TFL |
| KW |
7.46 |
|
|
|
|
| Frame |
256T |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91 |
Eff 75% |
|
PF |
79 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
208 |
| CC Number |
CC004A |
CE |
Yes |
Bearing PE |
309 |
| Load Type |
|
Inverter Type |
NONE |
Speed Range |
NONE |
|
| RPM |
1000 |
Hertz |
50 |
|
|
| HP |
10 |
Duty |
CONTINUOUS |
TYPE |
TFL |
| KW |
7.46 |
|
|
|
|
| Frame |
256T |
Serv. Factor |
1.0 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
89.5 |
Eff 75% |
|
PF |
82 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
208 |
| CC Number |
CC004A |
CE |
Yes |
Bearing PE |
309 |
| Load Type |
|
Inverter Type |
NONE |
Speed Range |
NONE |
|
| Motor Wt. |
294 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
A-EE7308-LN |
| Cust Part No |
|
Outline |
B-SS321100LN-1375 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
256674 |
| Carton Label |
|
|
|
GROUP: |
6 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
