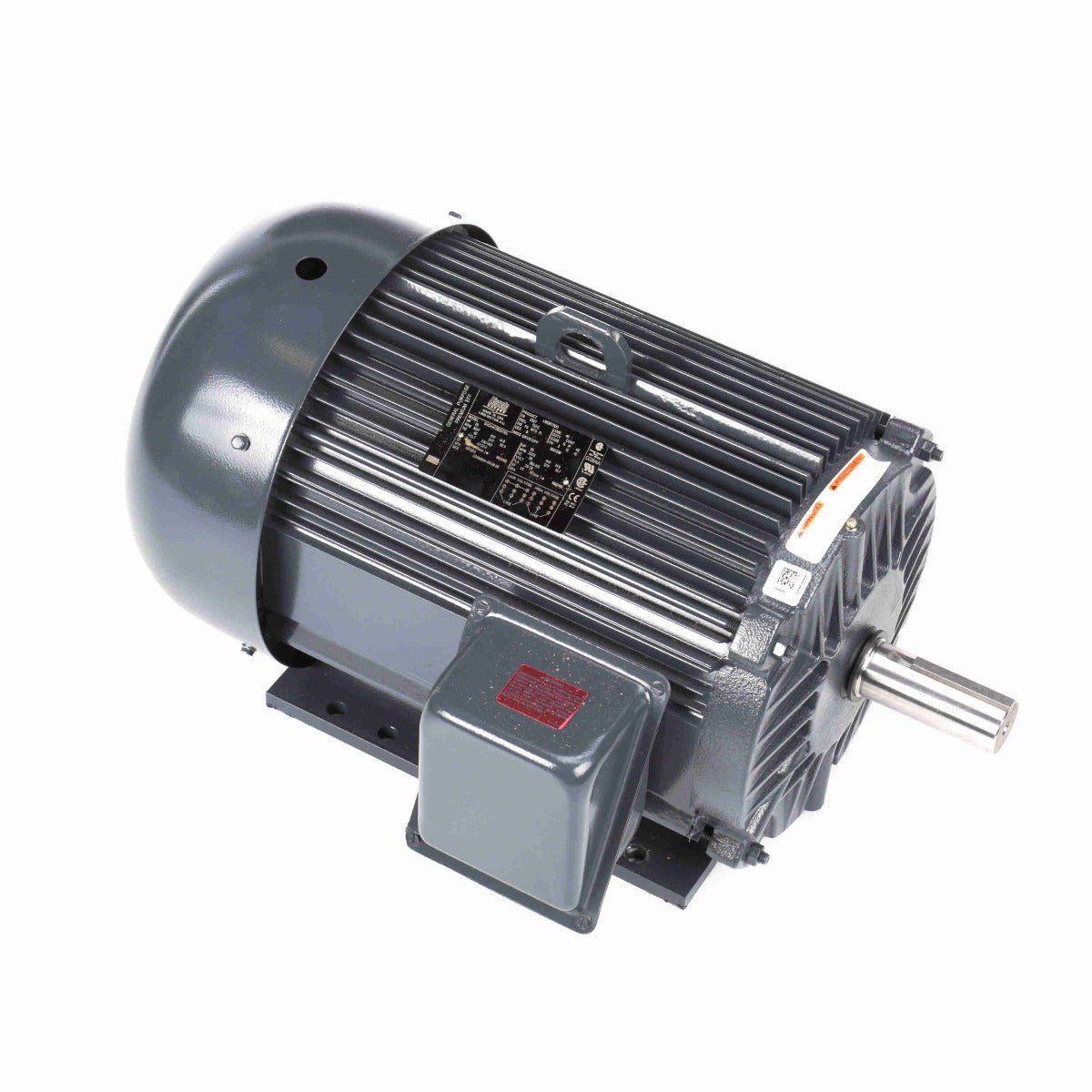

LM15673 Lincoln Motor 20HP 3600RPM 256T TEFC 230/460V 3 Phase AF2B0T61
Couldn't load pickup availability
Product details
- SKU LM15673
- Brand Lincoln
- Phase 3
- RPM 1801-3600
- HP / KW 20
- Application General Purpose
- Frame 254/6T
- Enclosure TOTALLY ENCLOSED
- Voltage 208-230/460V
Lincoln Model # AF2B0T61
LM15673 Leeson Three Phase Aluminum NEMA Premium Efficient Motors for reliable performance in heavy duty industrial jobs, including compressors, pumps, conveyors, and blowers. These motors have aluminum construction and 1.25 Service Factor and are ideal for “tough to handle” applications and are extremely versatile and can be field converted in minutes to many different configurations. More totally enclosed motor features:
- UL recognized and CSA certified
- Torques exceed NEMA performance standards
- Class F Insulation
- Shielded ball bearings
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
Engineering Data | |||||
Volts | 230 | Volts | 460 | Volts | 380-415 |
F.L. Amps | 47 | F.L. Amps | 23.4 | F.L. Amps | 28-26 |
S. F Amps | 59 | S. F Amps | 29.5 | S. F Amps | |
RPM | 3600 | Hertz | 60 | ||
HP | 20 | Duty | CONTINUOUS | TYPE | TFL |
KW | 14.9 | ||||
Frame | 256T | Serv. Factor | 1.25 | Phase | 3 |
Max Amb | 40 | Design | B | Code | G |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 92.4 | Eff 75% | 91.7 | PF | 86 |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 208 |
CC Number | CC004A | CE | Yes | Bearing PE | 309 |
Load Type | Inverter Type | Speed Range | NONE | ||
RPM | 3000 | Hertz | 50 | ||
HP | 20 | Duty | CONTINUOUS | TYPE | TFL |
KW | 14.9 | ||||
Frame | 256T | Serv. Factor | 1.0 | Phase | 3 |
Max Amb | 40 | Design | B | Code | G |
Insul Class | F | Protection | NOT | Therm.Prot. | |
Eff 100% | 91.7 | Eff 75% | PF | 88 | |
UL | V-INS, CONST UL REC | CSA | Yes | Bearing OPE | 208 |
CC Number | CC004A | CE | Yes | Bearing PE | 309 |
Load Type | Inverter Type | Speed Range | NONE | ||
Motor Wt. | 325 LB | Enclosure | TEFC | Lubrication | VERIFY |
Nameplate | 92117-EZ-L-BCDLM-A-A-X | Mounting | RIGID | Rotation | REV |
Assembly | Shaft Dia. | Ext. Diag. | A-EE7308-LN | ||
Cust Part No | Outline | B-SS321100LN-1375 | Ext. Diag2 | ||
Packaging | B | Winding | K256288 | ||
Carton Label | GROUP: | 10 | |||
Iris | Paint | GRAY - LINCOLN | Test Card |
