Manuf. Model # AAF2B15T61

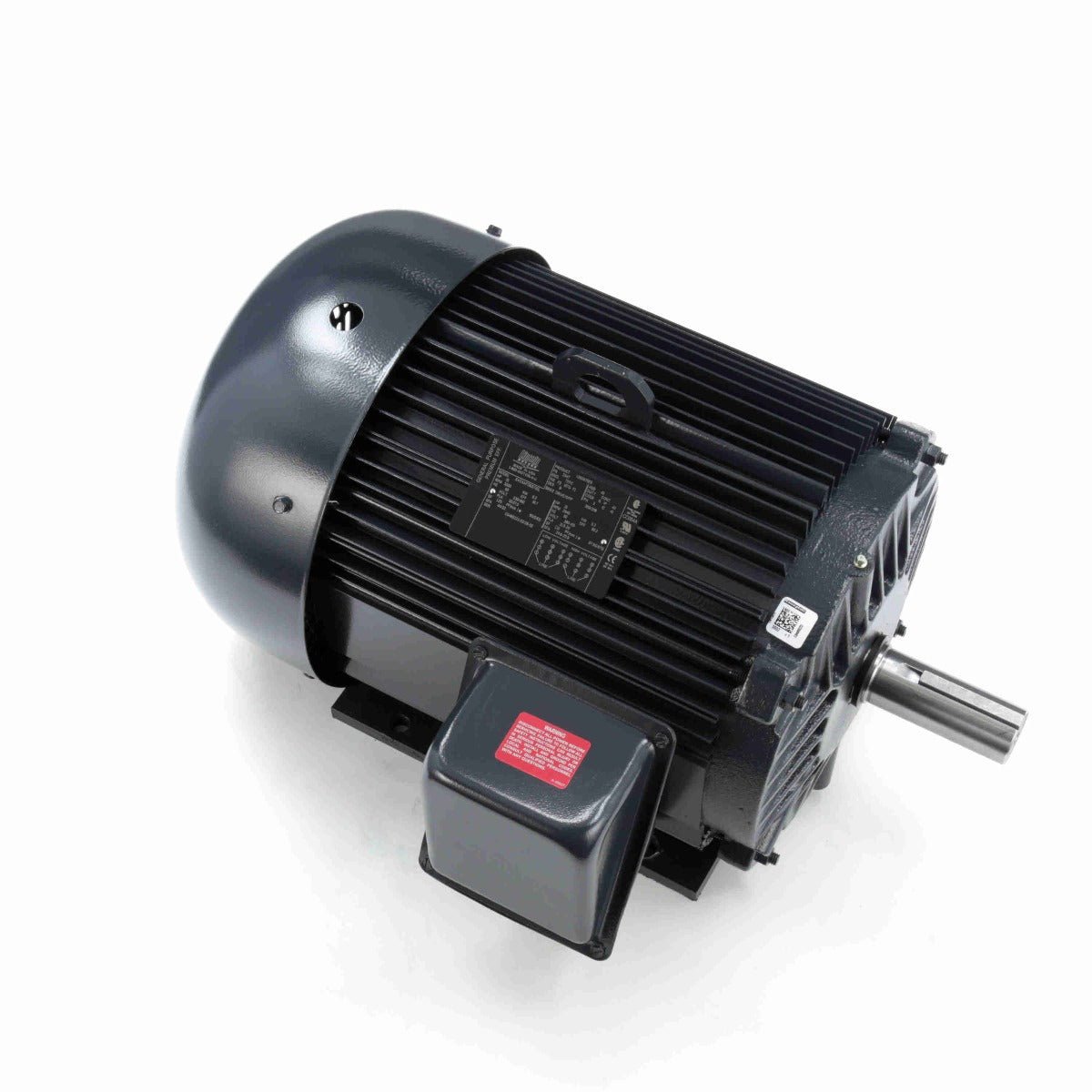

LM15670 Lincoln three phase energy efficient electric motors are well made with an aluminum body and quality ball bearings that last. Lincoln totally enclosed premium efficient electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class F insulation
- UL Recognized Component Listing and CSA approval
- Made in the USA
- 3 year factory warranty
Lincoln is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
380-415 |
| F.L. Amps |
35 |
F.L. Amps |
17.5 |
F.L. Amps |
21.5-20 |
| S. F Amps |
44 |
S. F Amps |
22 |
S. F Amps |
24.6-22.9 |
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TFL |
| KW |
11.2 |
|
|
|
|
| Frame |
254T |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91.7 |
Eff 75% |
|
PF |
85 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
208 |
| CC Number |
CC004A |
CE |
Yes |
Bearing PE |
309 |
| Load Type |
|
Inverter Type |
NONE |
Speed Range |
NONE |
|
| RPM |
3000 |
Hertz |
50 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TFL |
| KW |
11.2 |
|
|
|
|
| Frame |
254T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
90.2 |
Eff 75% |
|
PF |
87.5 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
208 |
| CC Number |
CC004A |
CE |
Yes |
Bearing PE |
309 |
| Load Type |
|
Inverter Type |
NONE |
Speed Range |
NONE |
|
| Motor Wt. |
215 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
A-EE7308K-LN |
| Cust Part No |
|
Outline |
B-SS321100LN-1200 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
K256289 |
| Carton Label |
|
|
|
GROUP: |
6 |
| Iris |
|
Paint |
STANDARD |
