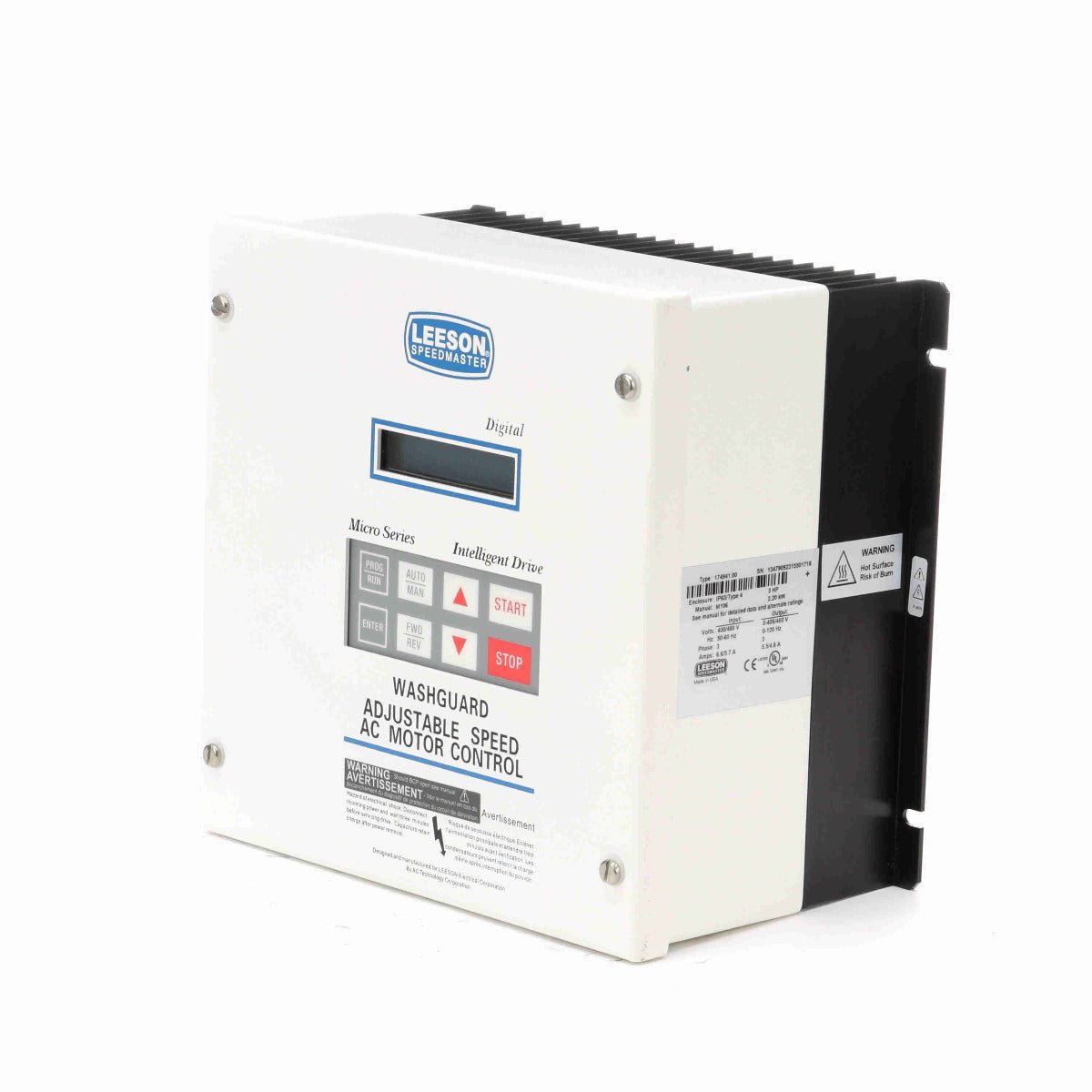

Buy Leeson Speedmaster micro washdown drives are simple and affordable motor speed controls. Enjoy easy set up with factory built-in settings and preset speeds. Drive read-out in plain English, so no more symbol translations needed! Made for the tough environments of the food processing industry in mind, Leeson washguard motor drives are sealed tight to protect from water, oil, chemicals; and the white epoxy finish won’t chip. Leeson Washguard inverters have adjustable carrier frequency, acceleration, and deceleration capabilities in both forward and reverse. More technical features include:
- NEMA 4/12 (IP65 / IP54) enclosure
- 400-480 input voltage
- Password protected
- No external cooling fan required
- Constant torque with adjustable current limit
- Capable of managing a 150% overload capacity for one minute
- Slip compensation
- Output signal, 0-10 VDC, speed or load
- Time and voltage adjustable Dc braking
- PID software built-in for motor feedback
- Time and voltage adjustable DC braking
- Analog output signal 0-10VDC speed or load
- Remote keypads and dynamic braking kits sold separately
Leeson Electric is a leader in the electric motor and drives industry. As an authorized Leeson distributor, Square One has access to nationwide warehouses for fast delivery to your door.
