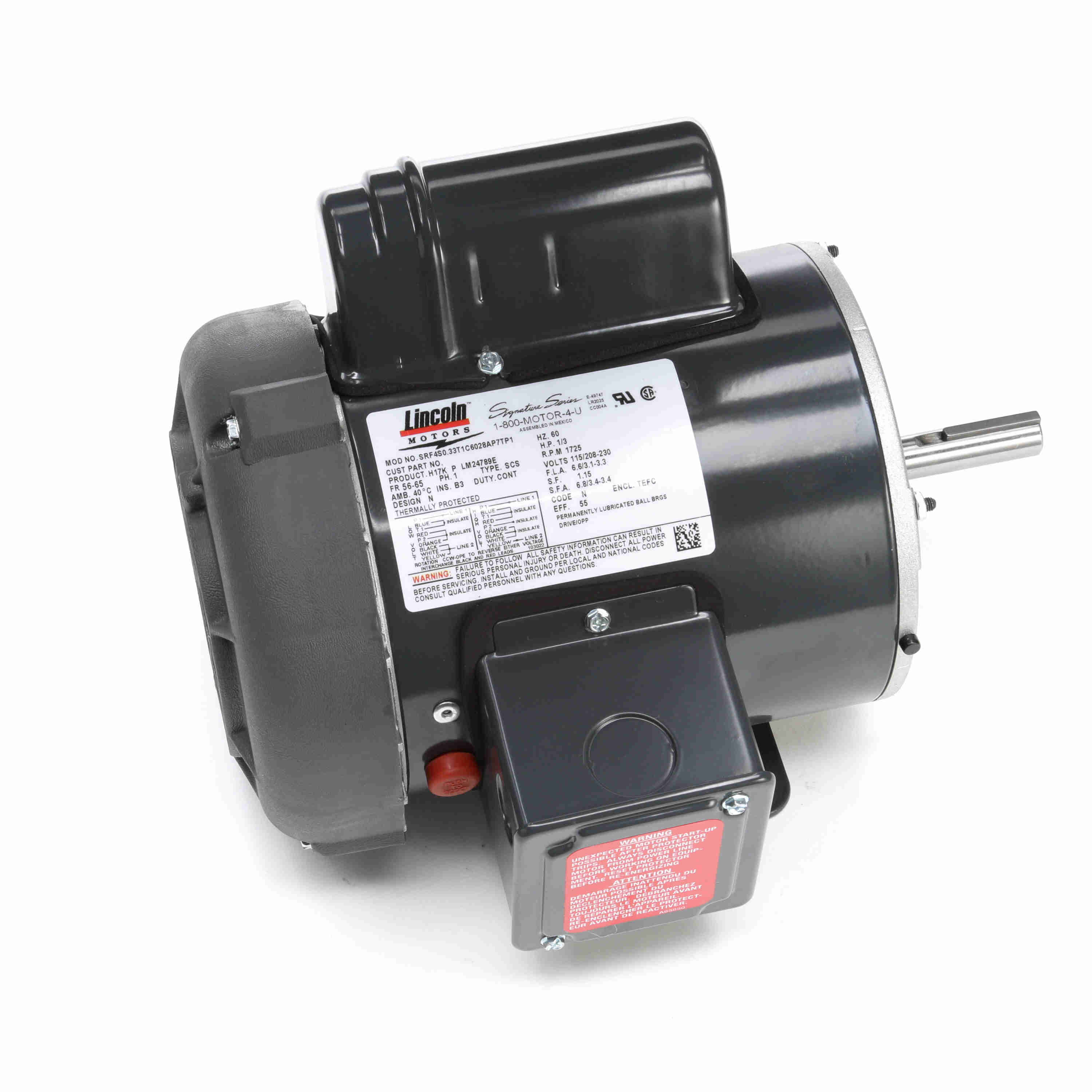

* Image is for reference only

LM24789 Leeson Motor 1/3HP 1725RPM 56 TEFC 115/208-230V 1 Phase

SKU: LM24789
$315.00
Sale $315.00
Description
  • Model #:SRF4S0.33T1C6028AP7TP1 UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Double-shielded bearings extend the service life of the motor.
  • Overload protection prevents motor from overheating.
  • Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
Nameplate

Nameplate

Phase: 1 Output HP: 0.33 Hp
Output KW: 0.25 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: 56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Efficiency: 55 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 6.6/3.3 A Power Factor: 60
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: N
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43
Number of Speeds: 1



Specs

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.82 in
Frame Length: 6.56 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

General Specifications

UPC: 691720981474 Weight: 24.00 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 9.12 IN Country of Origin: Mexico
