This item replaces # 100021.00
Leeson Model No: M05617DRC70004A3

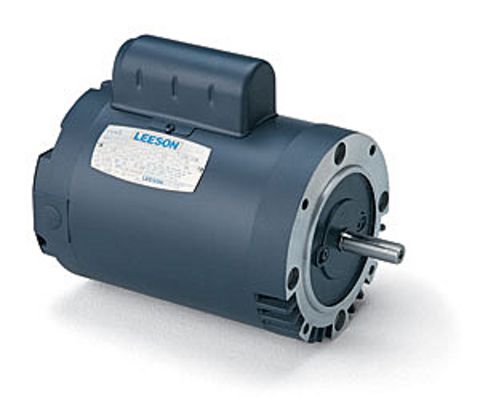

Do you need a reliable and durable general purpose motor? Look no further, you found it! Leeson E119857.00 is your ideal choice for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.
Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
- "C" Dimension: 10.99"
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
10.8 |
F.L. Amps |
5.3-5.4 |
F.L. Amps |
|
| S. F Amps |
12.4 |
S. F Amps |
6.1-6.2 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
CD |
| KW |
0.56 |
|
|
|
|
| Frame |
S56C |
Serv. Factor |
1.25 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
K |
| Insul Class |
B |
Protection |
MANUAL |
Therm.Prot. |
CEJ53CA |
| Eff 100% |
70 |
Eff 75% |
|
PF |
64 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
|
CE |
|
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
NONE |
Speed Range |
NONE |
|
| Motor Wt. |
24 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
A-92005-6 |
Mounting |
ROUND |
Rotation |
SELECTIVE CCW |
| Assembly |
LO100021 |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005003.52 |
| Cust Part No |
|
Outline |
031643-700 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
CE484207 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card
|
