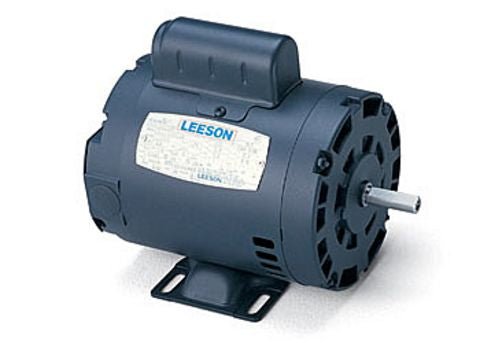

E119854.00 Single phase 3/4 HP Leeson electric motors can be used on compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their numerous warehouses nationwide are stocked with a wide inventory of motors, from small fractional to large horsepower. Leeson is a leading general purpose motor manufacturer because they study customer needs and application, and design their equipment accordingly.
Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Automatic overload
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you can't find what you need, please contact us (302) 678-0400
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
10.8 |
F.L. Amps |
5.3-5.4 |
F.L. Amps |
|
| S. F Amps |
12.4 |
S. F Amps |
6.1-6.2 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
CD |
| KW |
0.56 |
|
|
|
|
| Frame |
S56 |
Serv. Factor |
1.25 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
K |
| Insul Class |
B |
Protection |
AUTOMATIC |
Therm.Prot. |
CEJ53CV |
| Eff 100% |
70 |
Eff 75% |
|
PF |
64 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
|
CE |
|
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
28 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
A-92005-6 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
LO100003 |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005003.52 |
| Cust Part No |
|
Outline |
031640-700 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
CE484207 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card
|
