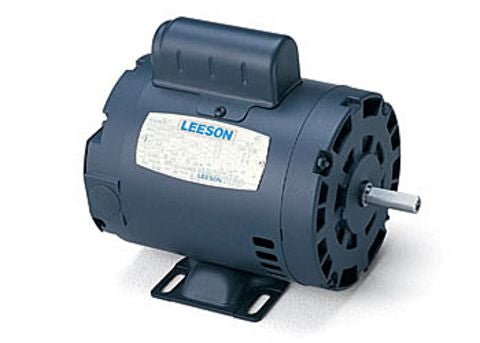

Leeson Manuf. Model Number: C6K17DB51 - Replaces Leeson motor # 100008.00
Leeson E119348.00 is single phase electric motors that is a quality machine with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. Single phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their multiple nationwide warehouses are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly. Features of this motor are:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
- "C" Dimension: 11.13"
- NOTE: This motor complies with the DOE Small Motor Rule 2010, that took effect March 9, 2015
All Leeson motors have a catalog number and model number that can be found on the motor nameplate and contain pertinent motor information.
Buy Leeson electric motors at Square One for great . Each motor has a Leeson warranty and comes new from the factory.
| Engineering Data |
| Volts |
115 |
Volts |
230 |
Volts |
|
| F.L. Amps |
6.6 |
F.L. Amps |
3.3 |
F.L. Amps |
|
| S. F Amps |
8.0 |
S. F Amps |
4.0 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
CD |
| KW |
.56 |
|
|
|
|
| Frame |
56 |
Serv. Factor |
1.25 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
L |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
81.8 |
Eff 75% |
|
PF |
97.2 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
40 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
10000417-001-001 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
D0000435-001 |
| Cust Part No |
|
Outline |
E119348.00-S01 |
Ext. Diag2 |
|
| Packaging |
INDIVIDUAL |
|
|
Winding |
SS0053728 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card |
00 |
