Manuf. Model # C6T17DB91 - Replaces item # 116754.00 and 110430.00

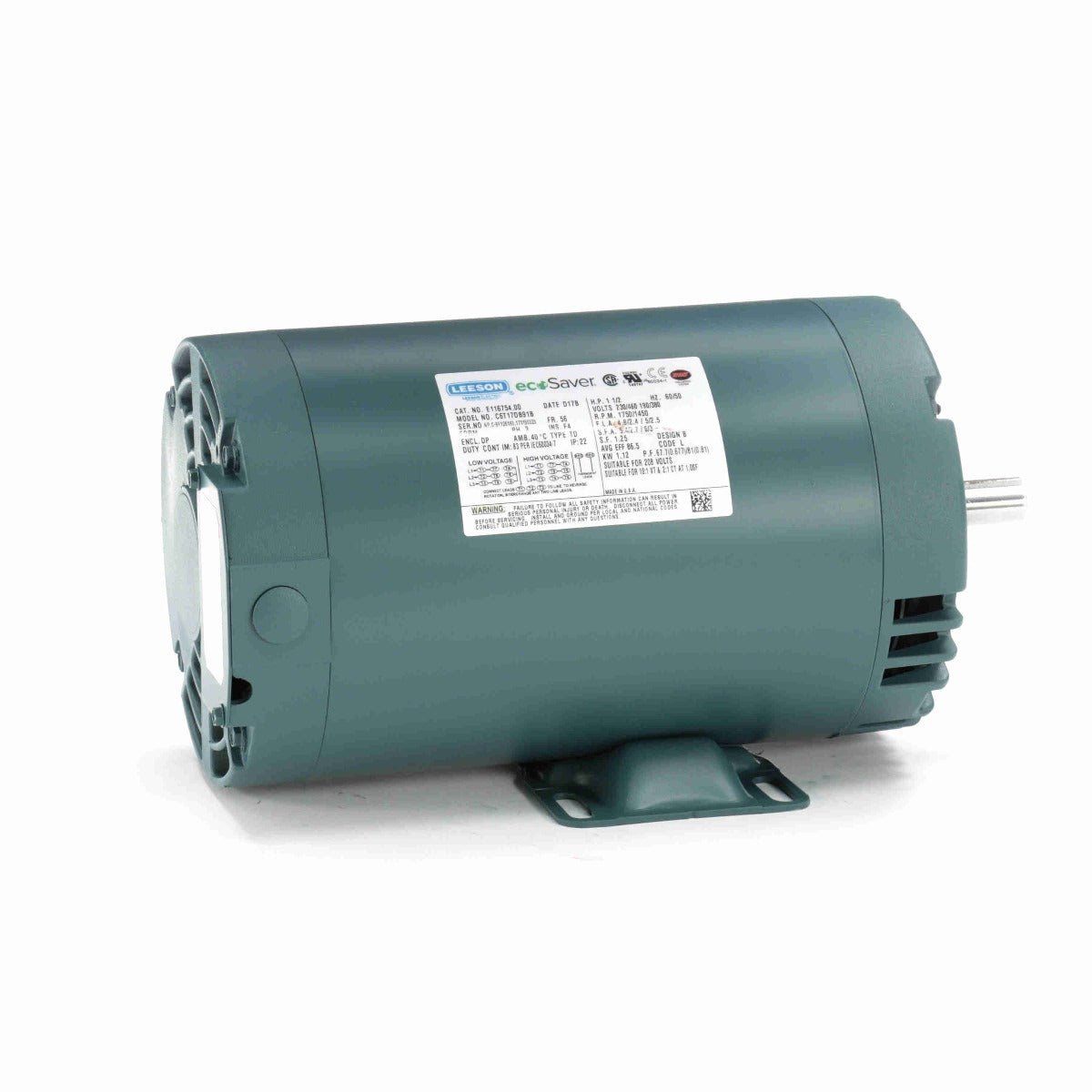

E116754.00 Leeson Dripprof Efficient Motors for reliable performance in heavy duty industrial jobs, including compressors, pumps, conveyors, and blowers. These three phase motors have cast iron construction and 1.25 Service Factor and are ideal for “tough to handle” applications and are extremely versatile and can be field converted in minutes to many different configurations.
More three phase motor features include:
- Double shielded ball bearings
- Continuous duty
- Complies with the DOE Small Motor Rule 2010, that took effect March 9, 2015
- Made in the US
- 3 year warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
4.8 |
F.L. Amps |
2.4 |
F.L. Amps |
5/2.5 |
| S. F Amps |
5.4 |
S. F Amps |
2.7 |
S. F Amps |
6/3 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
1 1/2 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
1.12 |
|
|
|
|
| Frame |
56 |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
L |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
9700K46 |
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
67.7 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.25 X BASE SPEED |
|
| Motor Wt. |
40 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
10000418-001-001 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
607-0191-800 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634341 |
| Carton Label |
Individual Leeson ECOSaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
