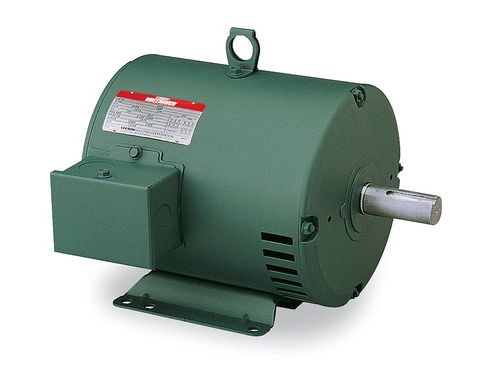

Leeson Model # C6T17DB95 - Replaces item # 100030.00 / 116738.00
E116738.00 Leeson Dripproof NEMA Efficient Motors for reliable performance in heavy duty industrial jobs, including compressors, pumps, conveyors, and blowers. These motors have rolled steel construction and 1.25 Service Factor and are ideal for “tough to handle” applications and are extremely versatile and can be field converted in minutes to many different configurations.
More three phase motor features include:
- Double shielded ball bearings
- Complies with the DOE Small Motor Rule 2010
- Continuous duty
- 3 year warranty on Efficient Motors
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
2.6 |
F.L. Amps |
1.3 |
F.L. Amps |
4.6/2.3 |
| S. F Amps |
2.9 |
S. F Amps |
1.45 |
S. F Amps |
5/2.5 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TS |
| KW |
.56 |
|
|
|
|
| Frame |
56 |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
LATER |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
81.1 |
Eff 75% |
|
PF |
71.1 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
30 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
10000419-001-001 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
D0000527-001 |
| Cust Part No |
|
Outline |
LM34051-S01 |
Ext. Diag2 |
|
| Packaging |
F |
|
|
Winding |
SS0066575 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
