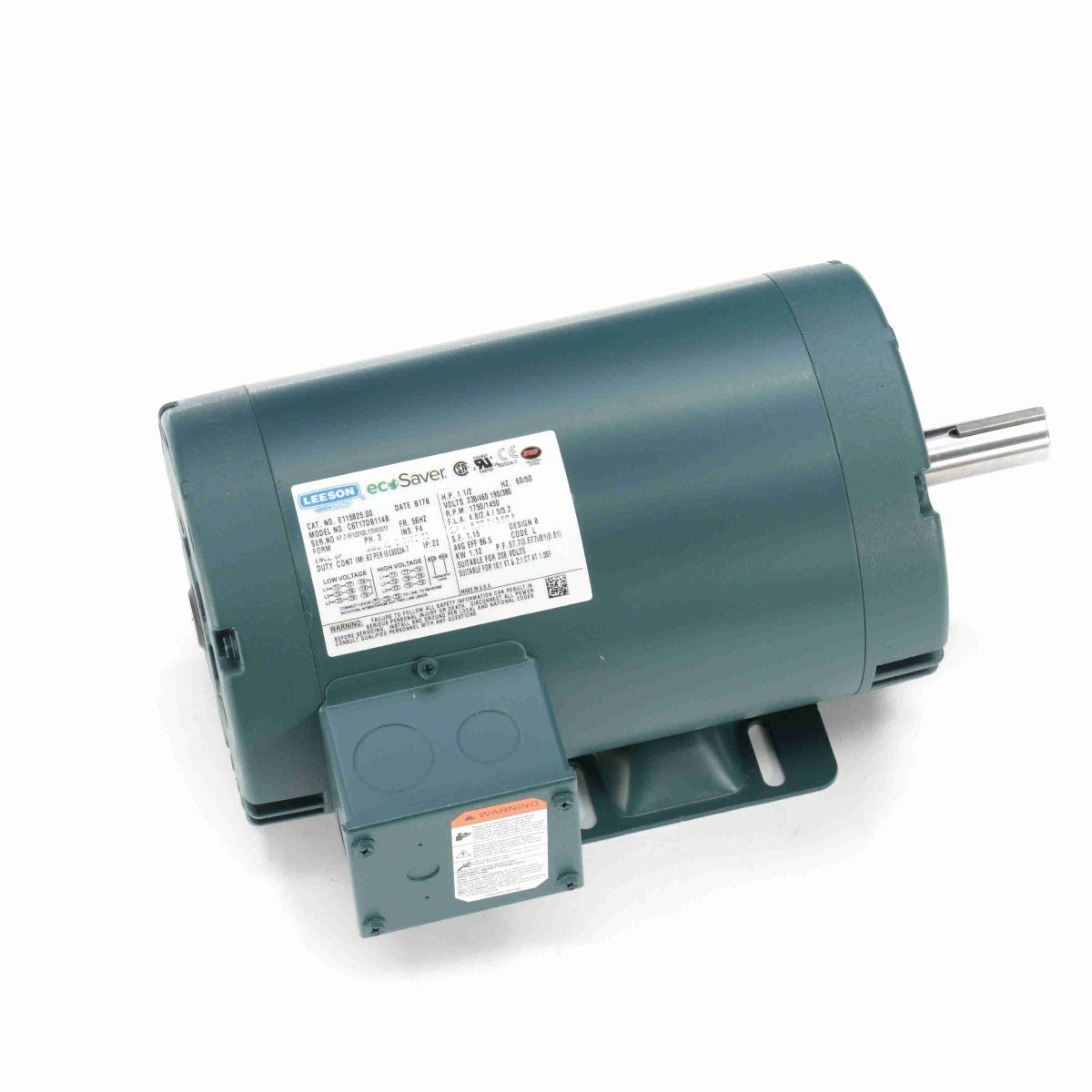

Leeson Model # C6T17DB114
E115825.00 Leeson three phase premium energy efficient electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Leeson dripproof electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:
- Meets or exceeds NEMA motor energy regulations
- Made in USA
- UL Recognized Component Listing and CSA approval
- Complies with the DOE Small Motor Rule 2010
- 3 year factory warranty
Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
4.8 |
F.L. Amps |
2.4 |
F.L. Amps |
5/5.2 |
| S. F Amps |
5.3 |
S. F Amps |
2.7 |
S. F Amps |
5.6/2.8 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
1 1/2 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
1.12 |
|
|
|
|
| Frame |
56HZ |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
L |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
9700K46 |
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
67.7 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6205 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.1 X BASE SPEED |
|
| Motor Wt. |
42 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
10000418-001-001 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
7/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
607-0197-800 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634341 |
| Carton Label |
Individual Leeson ECOSaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
