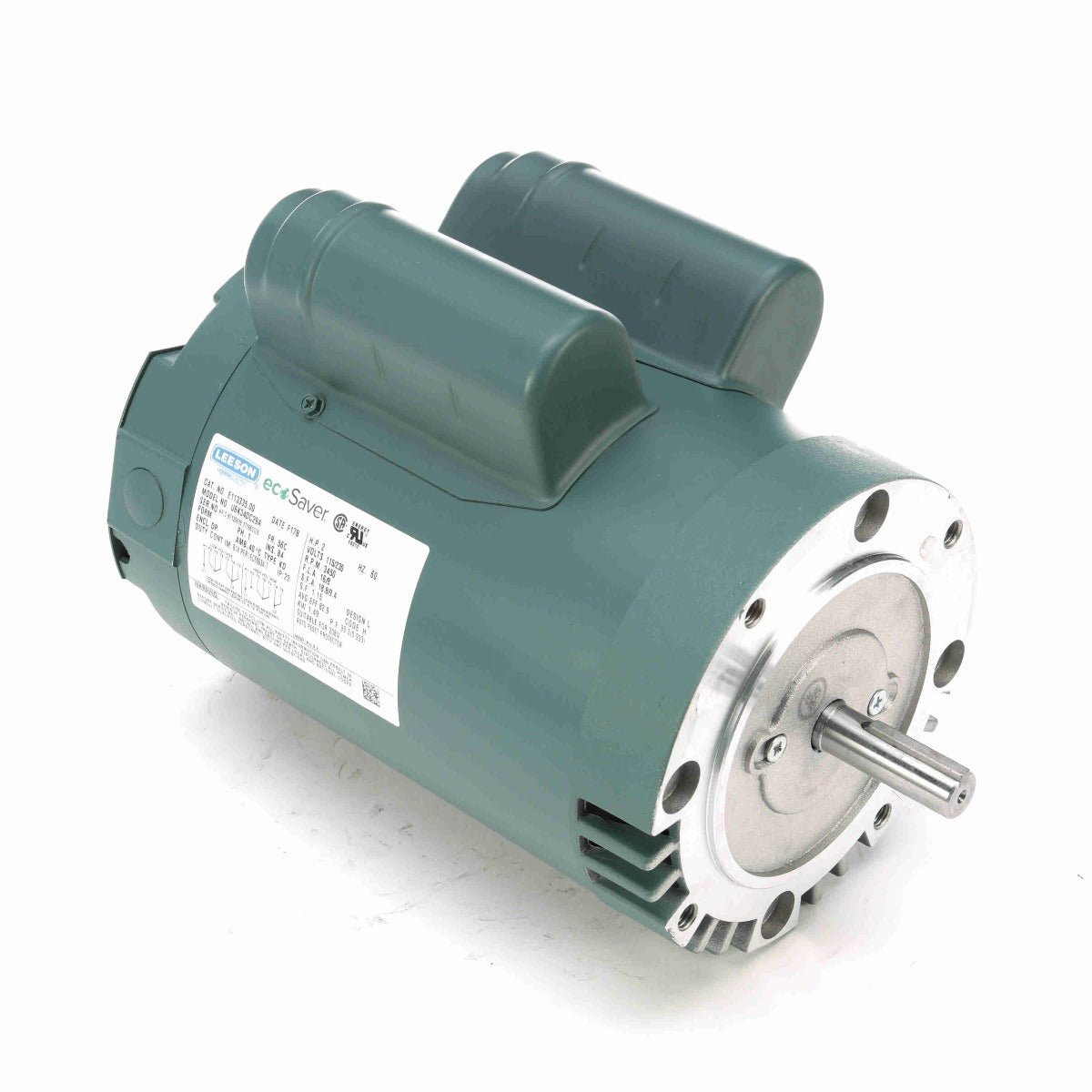

Model No. A6K34DC29A - Replaces 113335.00
Leeson motors is an industry leader largely because they listen to what the customers need, study applications, and design their motors to meet those needs. Leeson is known for the legacy of quality motor products. Whether you need a general purpose motor or an energy efficient motor, Leeson has the right motor for you. Features of E113335.00 Leeson 2HP single phase motor:
- Durable rolled steel construction
- NEMA design B performance
- Meets or exceeds NEMA service factors
- Double shielded ball bearings
- Continuous duty
- Themally protected ratings
- UL recognized
- CSA certified
- 1 year factory warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
20 |
F.L. Amps |
11-10 |
F.L. Amps |
|
| S. F Amps |
23.6 |
S. F Amps |
12.8-11.8 |
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
2 |
Duty |
CONTINUOUS |
TYPE |
CD |
| KW |
1.49 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
L |
Code |
J |
| Insul Class |
B |
Protection |
AUTOMATIC |
Therm.Prot. |
BEJ72DV |
| Eff 100% |
77 |
Eff 75% |
|
PF |
82 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
|
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
39 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
004004 |
Mounting |
ROUND |
Rotation |
SELECTIVE CCW |
| Assembly |
NONE |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005067.01 |
| Cust Part No |
|
Outline |
028600-700B |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
C632234 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card |
01 |
