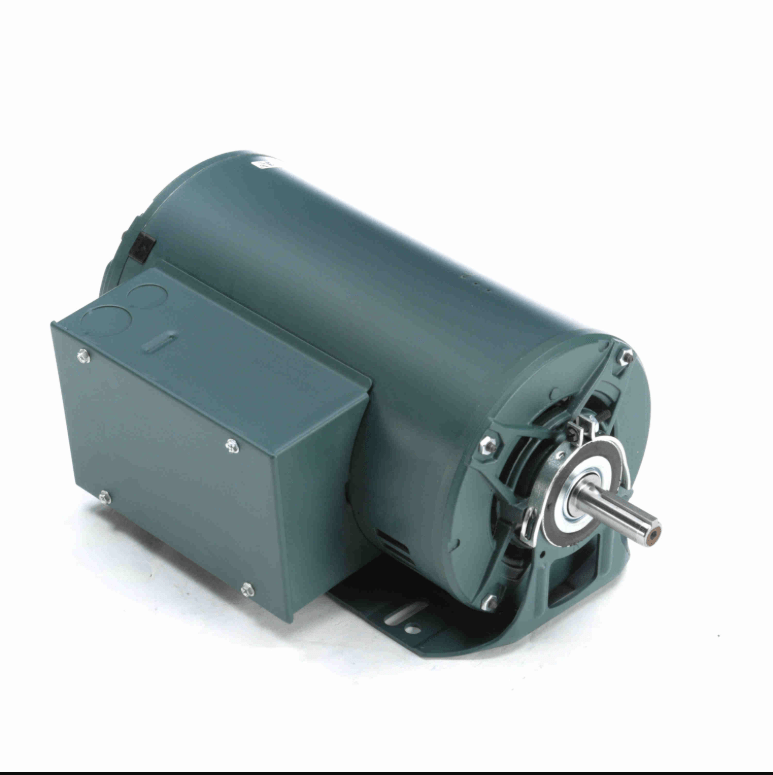

E110479.00 Leeson Motor 1.5HP 3450RPM 56H DP 115/230Volt Single Phase A6K34DR7

In stock
SKU: E110479
Regular price $607.25
Regular price $920.00 Sale Sale price $607.25

Product details

  • SKU E110479
  • Brand Leeson
  • Phase 1
  • RPM 1801-3600
  • HP / KW 1.5
  • Application General Purpose
  • Frame 56H/HC/HCZ/HZ
  • Enclosure OPEN
  • Voltage 115/208-230V

Leeson Model No. A6K34DR7 - Replaces 110479.00

Leeson Motor E110479.00 single phase general purpose Leeson motors have an ODP enclosure, which stands for Open Drip Proof and means that there are slots in the bottom of the motor body. These openings allow air to enter the motor so that it doesn’t overheat, but the motor is not completely guarded from water and materials getting in. ODP motors are can stand some water dripping on them, but use them in relatively clean, indoor locations, and not exposed outside! This Leeson AC motor comes with a built-in overload, which helps protect the equipment from overheating. Thermal overloads are designed to open the start circuit and cut power to the motor in the case that the motor begins overheating from drawing too much current for too long a period of time.



Leeson manufacturers top rated equipment because of their attention to details and market trends. These single phase electric motors are small but tough; they are built with quality parts, including long-lasting bearings and capacitors; balanced rotors; and durable steel frames. Please be aware that, while this resilient base motor can be used for fans, but it is not a high torque starting machine (it is classified as moderate torque).  Other features:



  • Resilient base
  • Self ventilated
  • "C" Dimension: 11.82"
  • 8.2 AMPS
  • 1.15 Service Factor



Shop online for the best deals on Leeson Electric motors at Square One Electric, an authorized Leeson distributor with access to nationwide warehouses for fast delivery to your door!





Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 16.4 F.L. Amps 8.6-8.2 F.L. Amps
S. F Amps 18 S. F Amps 9.8-9 S. F Amps

RPM 3600 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE CD
KW 1.12
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ38CV
Eff 100% 74 Eff 75%   PF 80
UL No CSA No Bearing OPE 6203
CC Number   CE   Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 33 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004004 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly NONE Shaft Dia. 5/8 IN Ext. Diag. 005003.01
Cust Part No   Outline 028631-600B Ext. Diag2
Packaging B     Winding C632226
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint STANDARD Test Card 01
