Manuf Model # C6T34DC7 - Replaces item # 110111.00

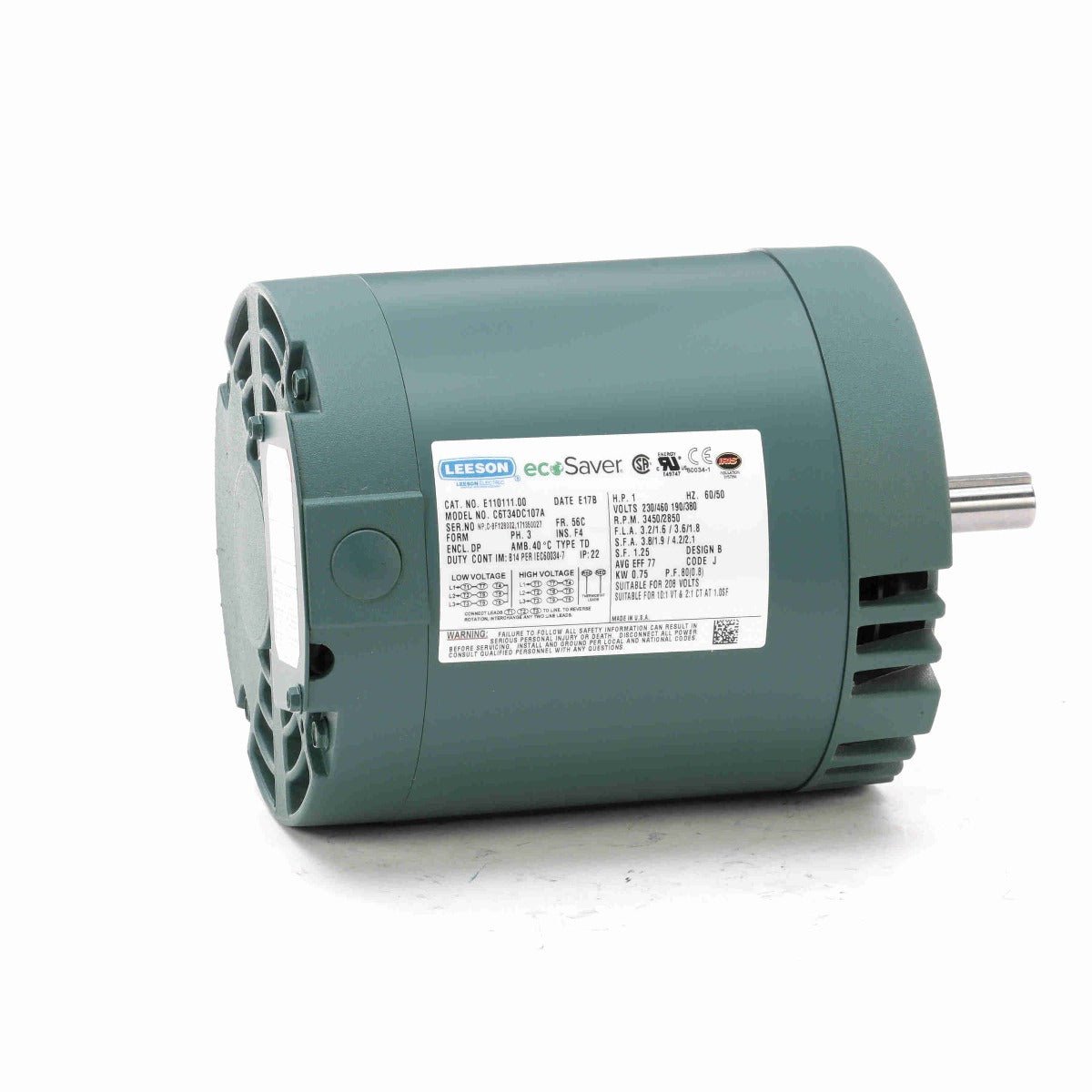

E110111.00 Leeson three phase premium energy efficient electric motors are made with a rolled steel body and dripproof enclosure. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers. More energy efficient motor features include:
- Double shielded ball bearings
- Exceed NEMA design B performance
- Continuous duty
- 3 year warranty
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
3.2 |
F.L. Amps |
1.6 |
F.L. Amps |
3.6/1.8 |
| S. F Amps |
3.8 |
S. F Amps |
1.9 |
S. F Amps |
4.2/2.1 |
|
| RPM |
3600 |
Hertz |
60/50 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
0.75 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
9700K46 |
| Eff 100% |
77 |
Eff 75% |
|
PF |
80 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.1 X BASE SPEED |
|
| Motor Wt. |
21 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
10000418-001-001 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
NONE |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
607-0192-500 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T632161 |
| Carton Label |
Individual Leeson ECOSaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
