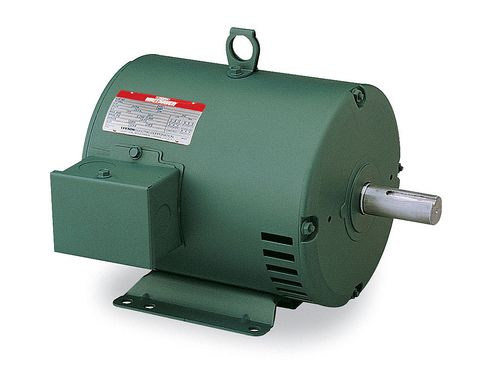

Leeson Model # C6T11DB23 - Replaces item # 110028.00
E110028.00 Leeson Three Phase NEMA Efficient Motors for reliable performance in heavy duty industrial jobs, including compressors, pumps, conveyors, and blowers. These motors have a rolled steel construction and 1.15 Service Factor and are ideal for “tough to handle” applications and are extremely versatile and can be field converted in minutes to many different configurations. This motor complies with the DOE Small Motor Rule 2010, which took effect March 9, 2015. More features include:
- UL Recognized and CSA Certified
- Shielded ball bearings
- Class B insulation
- 3 year manufactors warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
2.8 |
F.L. Amps |
1.4 |
F.L. Amps |
3.2/1.6 |
| S. F Amps |
3 |
S. F Amps |
1.5 |
S. F Amps |
3.4/1.7 |
|
| RPM |
1200 |
Hertz |
60/50 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
.56 |
|
|
|
|
| Frame |
56 |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
9700K46 |
| Eff 100% |
81.7 |
Eff 75% |
|
PF |
64.2 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.1 X BASE SPEED |
|
| Motor Wt. |
35.6 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
10000418-001-001 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
607-0191-700 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T636112 |
| Carton Label |
Individual Leeson ECOSaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
