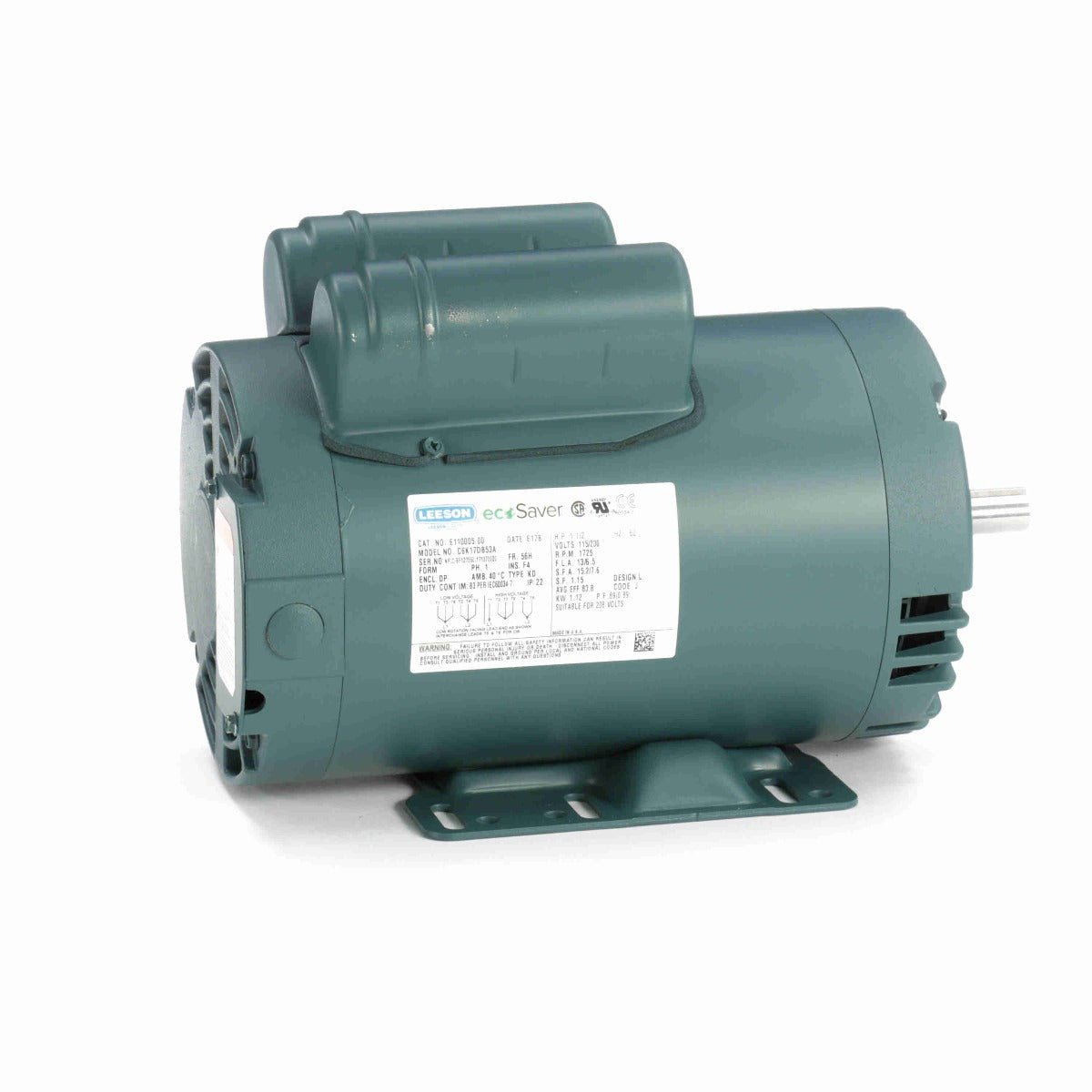

E110005.00 Leeson AC Motor 1.5HP 1725RPM 56H DP 115/208-230Volt 1 Phase C6K17DB53

Leeson Model No. C6K17DB53

Replaces Leeson part # 110005.00 and LM24583

Leeson E110005.00 is Energy Efficient single phase electric motor made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.

When selecting a motor, be aware of the environment so you pick the right enclosure, Open (ODP) motors are intended for environments where equipment is not exposed to excessive water or dirt because there are open slots in the motor body. Totally enclosed (TEFC) motors can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit.

More single phase motor features include:

• Double shielded ball bearings
• Continuous duty
• 3 year warranty on Efficient Motors
• "C" Dimension: 13.28"
• This motor complies with the DOE Small Motor Rule 2010, which went into effect March 9, 2015

Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
