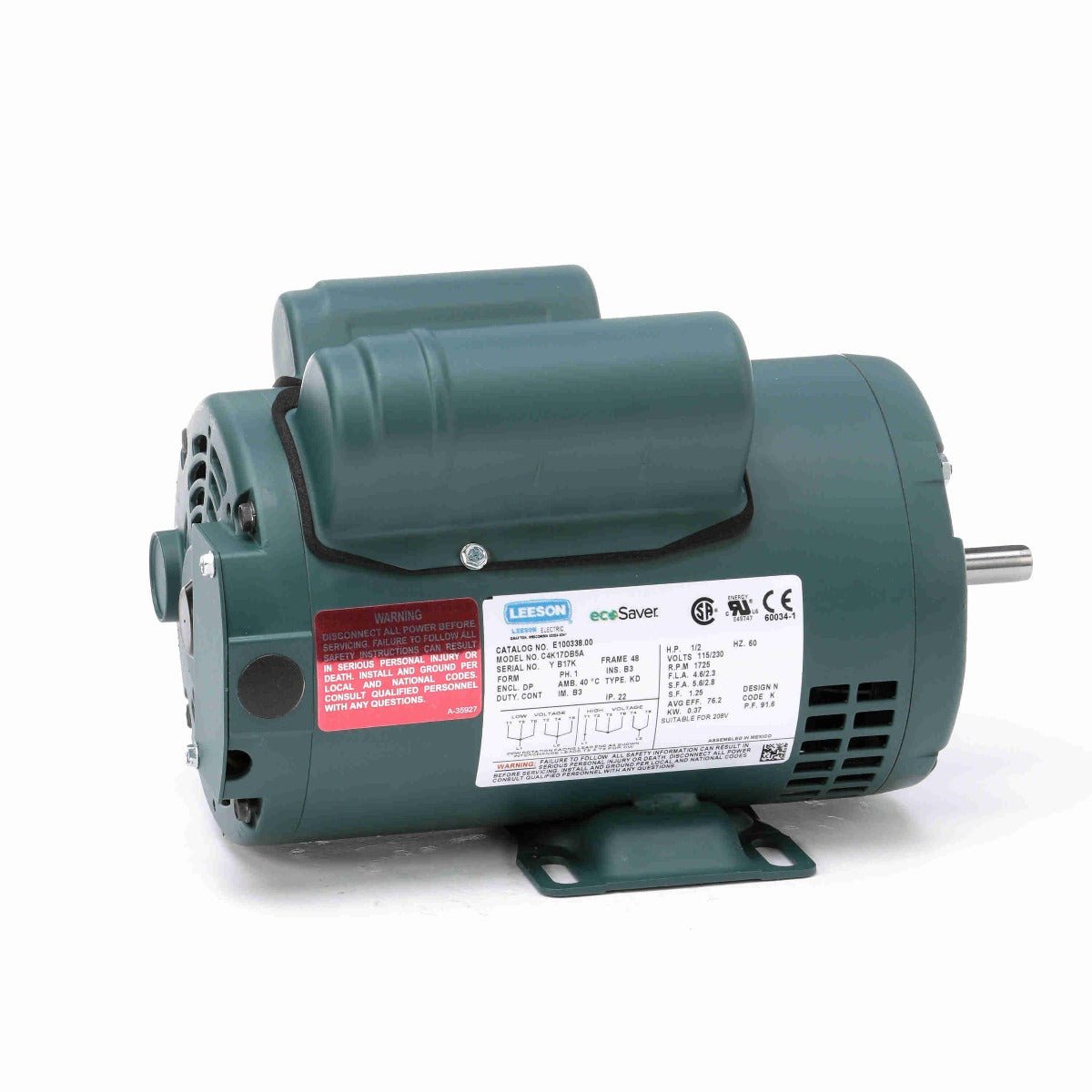

E100338.00 Leeson Motor 1/2HP 1725RPM 48 DP 115/208-230V 1 Phase C4K17DB5
- Description
E100338.00 Leeson Model Number: C4K17DB5A - This item replaces #100338.00 / Marathon C164A
Single phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their multiple nationwide warehouses are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly.
Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- No overload
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
Square One Electric is an authorized Leeson motor distributor and where to buy Leeson products online. Each unit comes from the closest stocked Leeson warehouse to your location; and all motors have a manufacturer's warranty.
| Engineering Data | |||||
| Volts | 115 | Volts | 230 | Volts | |
| F.L. Amps | 4.6 | F.L. Amps | 2.3 | F.L. Amps | |
| S. F Amps | 5.6 | S. F Amps | 2.8 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 1/2 | Duty | CONTINUOUS | TYPE | KD |
| KW | 0.37 | ||||
| Frame | 48 | Serv. Factor | 1.25 | Phase | 1 |
| Max Amb | 40 | Design | N | Code | K |
| Insul Class | B | Protection | NOT | Therm.Prot. | |
| Eff 100% | 76.2 | Eff 75% | PF | 91.6 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 6203 |
| CC Number | EXEMPT | CE | Yes | Bearing PE | 6203 |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 22.2 LB | Enclosure | DP | Lubrication | VERIFY |
| Nameplate | 10000417-001-001 | Mounting | RIGID | Rotation | SELECTIVE CCW |
| Assembly | Shaft Dia. | Ext. Diag. | A-005054-15-REGAL | ||
| Cust Part No | Outline | A-SS404123-750 | Ext. Diag2 | ||
| Packaging | F | Winding | BE484110 | ||
| Carton Label | GROUP: | 3 | |||
| Iris | Paint | GREEN (POWDER) | Test Card | 00 | |
