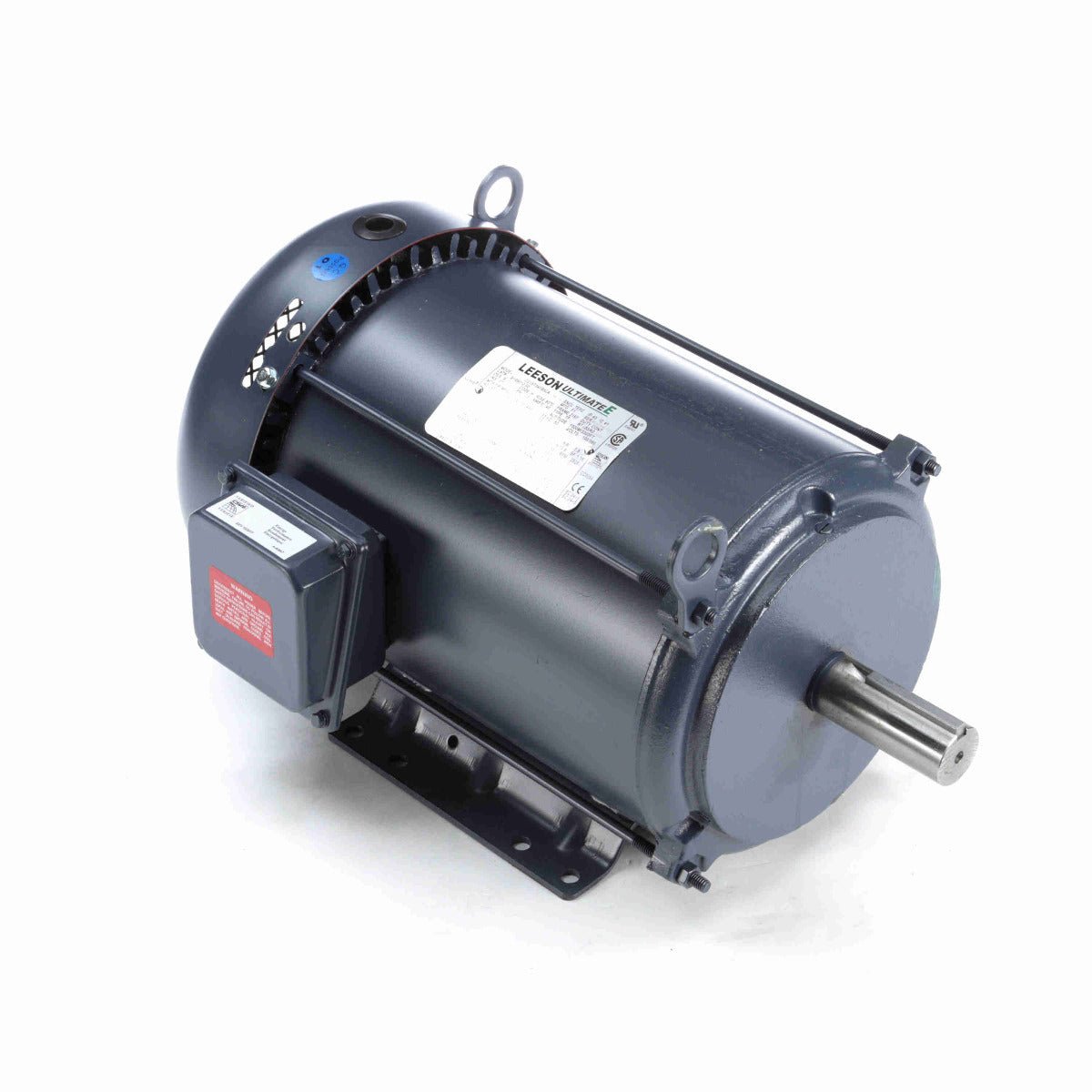

Manuf Model # C215T34FB52 - Replaces 199012.00 / 215TTFBD6002 / Marathon GT1518
B199012.00 Leeson three phase super efficient electric motors are made with a cast iron body and exceed NEMA design B performance. Use for a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers. Additional features:
- Double shielded ball bearings
- Continuous duty
- 3 year warranty on Efficient Motors
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
22.8 |
F.L. Amps |
11.4 |
F.L. Amps |
21/10.5 |
| S. F Amps |
25.6 |
S. F Amps |
12.8 |
S. F Amps |
24.2/12.1 |
|
| RPM |
3600 |
Hertz |
60/50 |
|
|
| HP |
10 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
7.5 |
|
|
|
|
| Frame |
215T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
90.2 |
Eff 75% |
|
PF |
90 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6206 |
| CC Number |
CC005A |
CE |
No |
Bearing PE |
6307 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
175 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
93405-L-N-ABDFH-B-A |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
EE7308-LE |
| Cust Part No |
|
Outline |
SS620291 |
Ext. Diag2 |
|
| Packaging |
F |
|
|
Winding |
CHT21520005 |
| Carton Label |
|
|
|
GROUP: |
1 |
| Iris |
|
Paint |
GRAY (ENAMEL) |
Test Card
|
