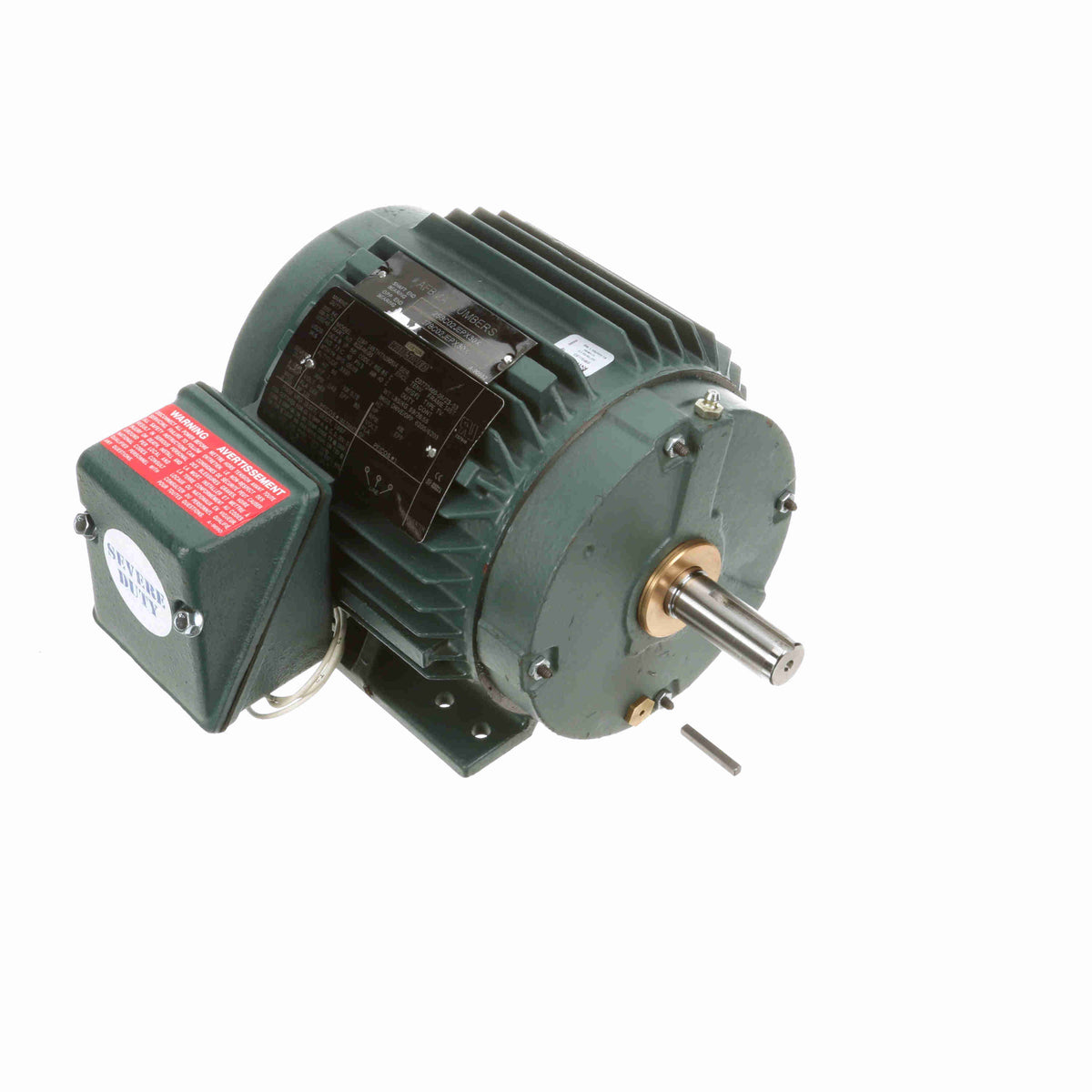

811646.00 Leeson Motor 1HP 1200RPM 145T TENV 460V 3 Phase 145THTN9076
Couldn't load pickup availability
Product details
- SKU 811646
- Brand Leeson
- Phase 3
- RPM 901-1200
- HP / KW 1
- Application IEEE 841 Petro Chem
- Frame 143/5T
- Enclosure TOTALLY ENCLOSED
- Voltage 460V
Manuf Model # 145THTN9076
811646.00 Leeson totally enclosed fan cooled severe duty IEEE 841 Premium efficient motors feature re-greasable bearings and a rigid base. They can be used in harshest environments that you may find in refineries, above-ground mines, paper and pulp mills and other severe duty applications. More features include:
· Inpro shaft seals
· Inverter rated insulation system
· 5 year warranty
· Epoxy paint
· Test data supplied with each motor
· IP56 enclosure protection
· Tested to IEEE45 USCG Marine Duty API RP14F for offshore platforms
· Division 2 CSA certification
· Cast Iron construction
· Made in the USA
Specifications:
· Voltage: 460
· Amps: 1.7
· Service Factor: 1.15
· "C" Dimension: 11.43
