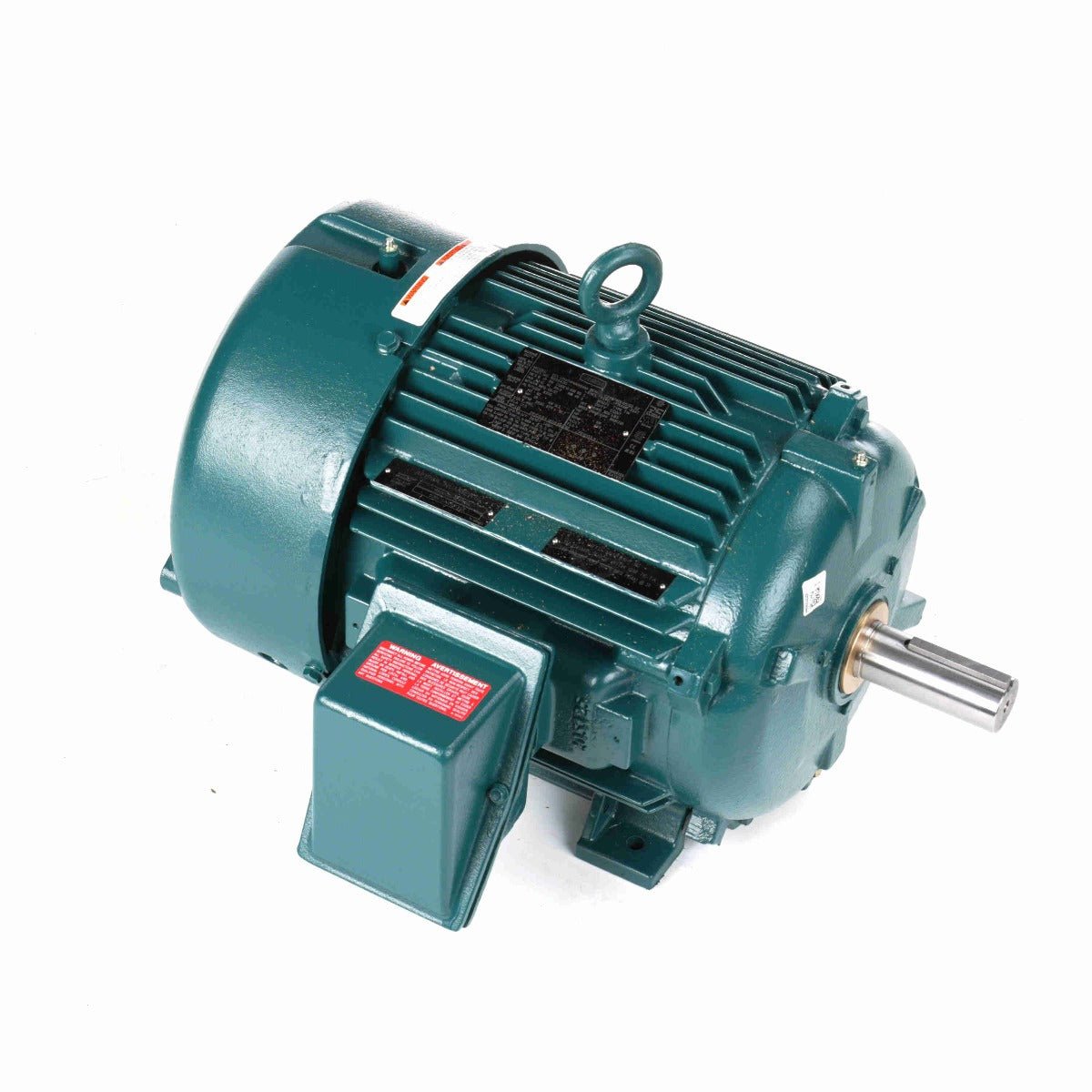

Leeson Model # 254THFNA19014
811544.00 Leeson totally enclosed fan cooled IEEE 841 Efficient Motors feature a epoxy paint and Made in the USA. They can be used in harshest environments that you may find in refineries, above-ground mines, paper and pulp mills and other applications. More features include:
- Inpro shaft seals
- Inverter rated insulation system
- Re-greasable bearings
- 5 year warranty
- Test data supplied with each motor
- IP56 enclosure protection
- Tested to IEEE45 USCG Marine Duty API RP14F for offshore platforms
- Division 2 CSA certification
- Cast Iron construction
- Dual voltage design
Specifications:
- Voltage: 460
- Amps: 17.5
- Service Factor: 1.15
- "C" Dimension: 23.52
Engineering Data
| |
| Volts |
460 |
Volts |
|
Volts |
|
| F.L. Amps |
17.5 |
F.L. Amps |
|
F.L. Amps |
|
| S. F Amps |
20 |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TW |
| KW |
11.2 |
|
|
|
|
| Frame |
254T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91.7 |
Eff 75% |
91.7 |
PF |
85 |
| UL |
V-INS, CONST UL REC |
CSA |
No |
Bearing OPE |
210 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
309 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.5 X BASE SPEED |
|
| Motor Wt. |
345 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
1-9/14 IN |
Ext. Diag. |
A-EE7300-LE |
| Cust Part No |
|
Outline |
B-SS203002LE-1050 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
K256289 |
| Carton Label |
|
|
|
GROUP: |
7 |
| Iris |
|
Paint |
GREEN - LEESON (EPOXY) |
Test Card |
|
