Manuf Model # 213THTS19008

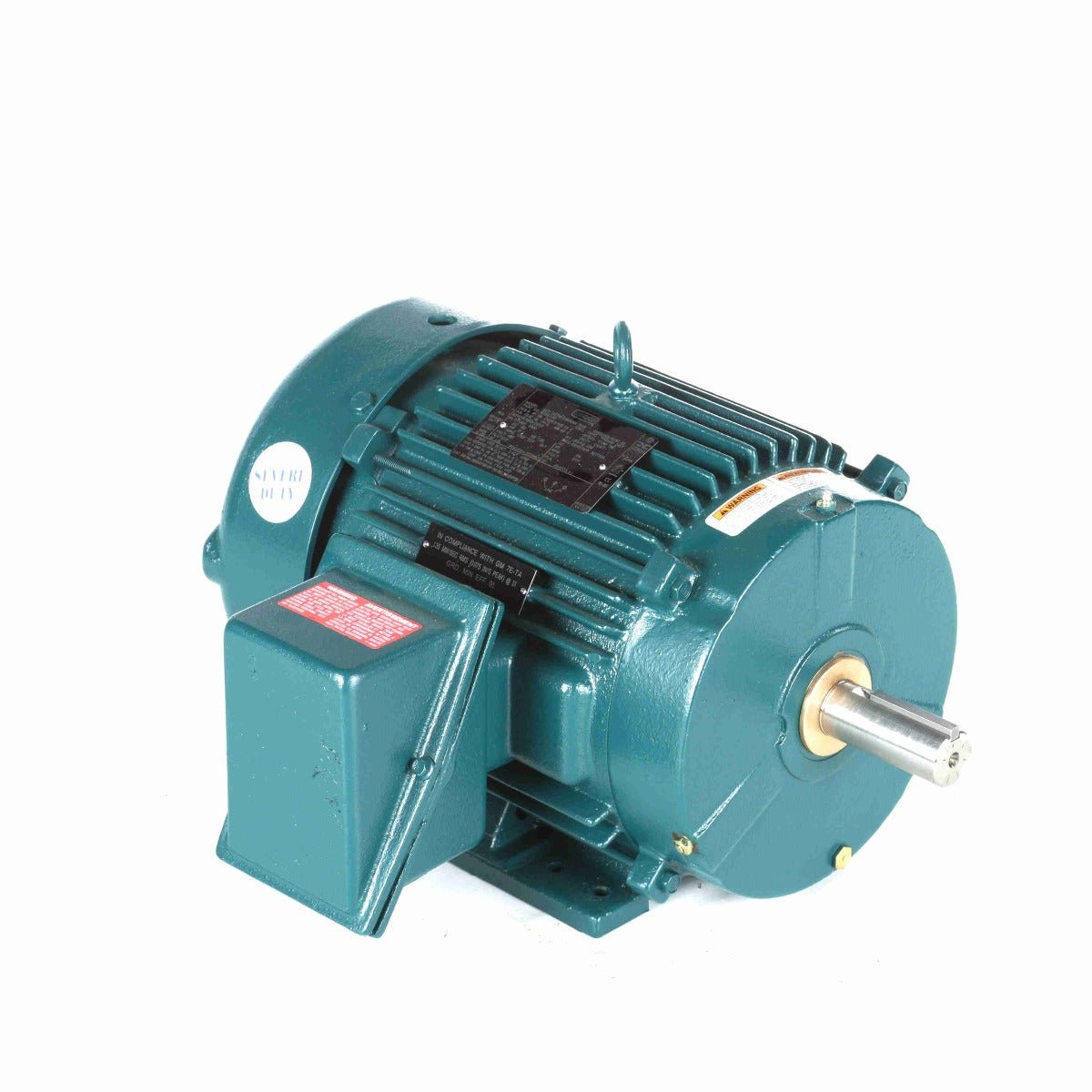

811550.00 Leeson three phase IEEE 841 Efficient Motors feature cast iron construction and totally enclosed enclosure. They can be used in harshest environments that you may find in refineries, above-ground mines, paper and pulp mills and other applications. More features include:
- Inpro shaft seals
- Inverter rated insulation system
- Re-greasable bearings
- Epoxy paint
- Test data supplied with each motor
- IP56 enclosure protection
- Tested to IEEE45 USCG Marine Duty API RP14F for offshore platforms
- Division 2 CSA certification
- Rigid base
- 5 year warranty
- Made in the USA
Specifications:
- Voltage: 460
- Amps: 8.9
- Service Factor: 1.15
- "C" Dimension: 17.18
Engineering Data
| |
| Volts |
460 |
Volts |
|
Volts |
|
| F.L. Amps |
8.9 |
F.L. Amps |
|
F.L. Amps |
|
| S. F Amps |
10 |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
7 1/2 |
Duty |
CONTINUOUS |
TYPE |
TV |
| KW |
5.6 |
|
|
|
|
| Frame |
213T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91.7 |
Eff 75% |
92.4 |
PF |
87.5 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
206 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
307 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
200 LB |
Enclosure |
TENV |
Lubrication |
VERIFY |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
1-5/14 IN |
Ext. Diag. |
NONE |
| Cust Part No |
|
Outline |
SS85995ALE-875 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
K213269 |
| Carton Label |
|
|
|
GROUP: |
2 |
| Iris |
|
Paint |
GREEN - LEESON (EPOXY) |
Test Card |
|
