Manuf Model # 184THFS19010

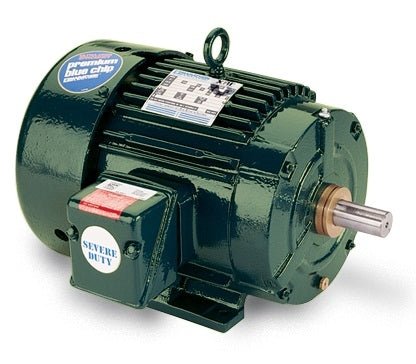

811548.00 Leeson totally enclosed fan cooled IEEE 841 Efficient Motors feature epoxy paint and made in the USA. They can be used in harshest environments that you may find in refineries, above-ground mines, paper and pulp mills and other applications. More features include:
- Inpro shaft seals
- Inverter rated insulation system
- 5 year warranty
- Re-greasable bearings
- Test data supplied with each motor
- IP56 enclosure protection
- Tested to IEEE45 USCG Marine Duty API RP14F for offshore platforms
- Division 2 CSA certification
- Cast Iron construction
- Rigid base
Specifications:
- Voltage: 460
- Amps: 5.9
- Service Factor: 1.15
- "C" Dimension: 16.19
| Engineering Data |
| Volts |
460 |
Volts |
|
Volts |
|
| F.L. Amps |
5.9 |
F.L. Amps |
|
F.L. Amps |
|
| S. F Amps |
6.7 |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TW |
| KW |
3.70 |
|
|
|
|
| Frame |
184T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
89.5 |
Eff 75% |
90.2 |
PF |
89 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
205 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
142 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
1-1/7 IN |
Ext. Diag. |
A-EE7300-LE |
| Cust Part No |
|
Outline |
A-SS68446LE-675 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
1842116 |
| Carton Label |
|
|
|
GROUP: |
7 |
| Iris |
|
Paint |
GREEN - LEESON (EPOXY) |
Test Card |
|
