Manuf Model # C145T17FB25

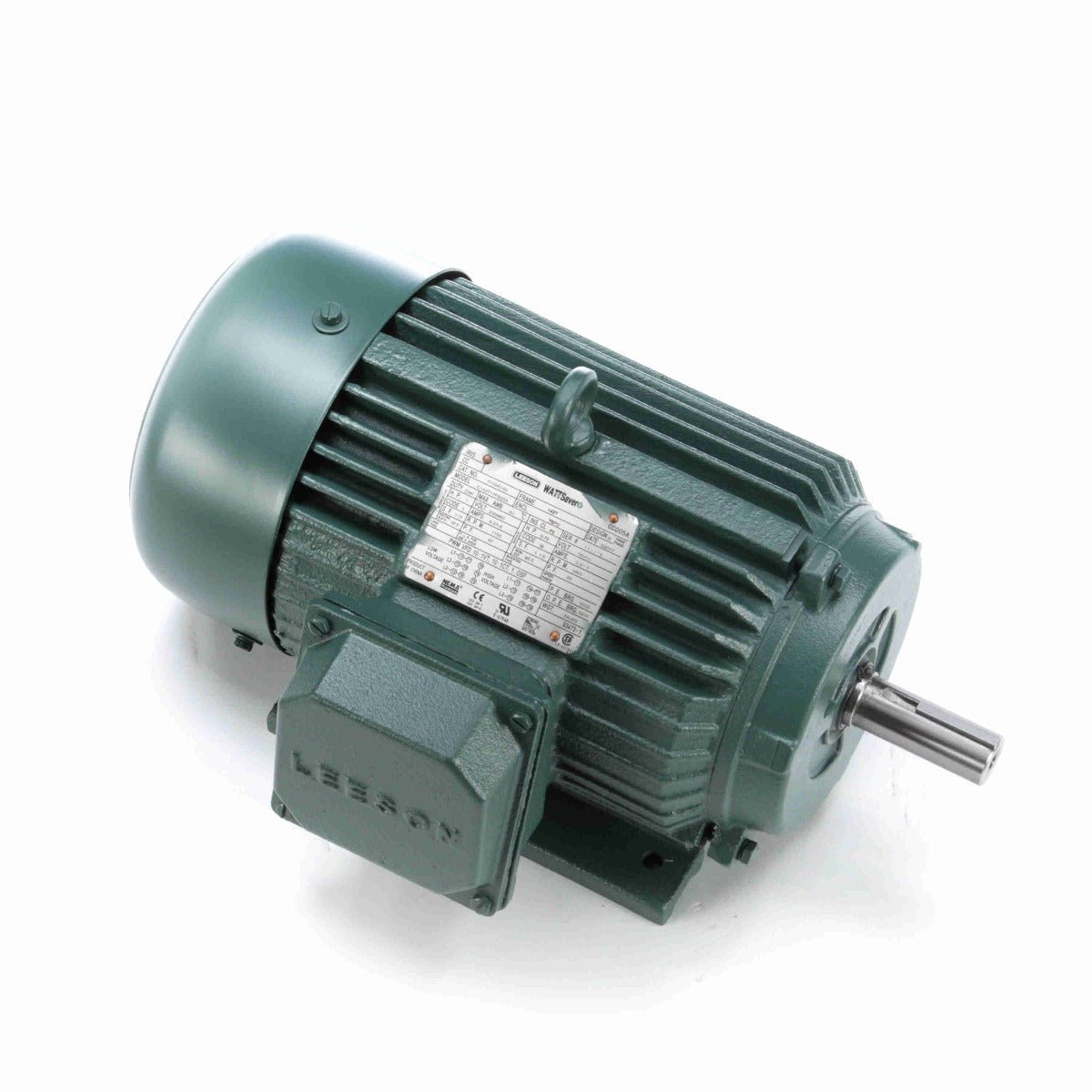

171640.60 Leeson totally enclosed fan cooled premium efficiency electric motors are quality machines with durable ball bearings and rolled steel frames. Three phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. More features:
- Cast iron body
- Rigid base
- Dynamically balanced rotors
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
3.2 |
F.L. Amps |
1.6 |
F.L. Amps |
3/1.5 |
| S. F Amps |
3.6 |
S. F Amps |
1.8 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
TFS |
| KW |
.75 |
|
|
|
|
| Frame |
145T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
L |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
85.5 |
Eff 75% |
|
PF |
67 |
| UL |
V-INS, CONST UL REC |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
CC004A |
CE |
Yes |
Bearing PE |
6205 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
61 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
81024 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
SS622146 |
Ext. Diag2 |
|
| Packaging |
N |
|
|
Winding |
T06804006 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card
|
