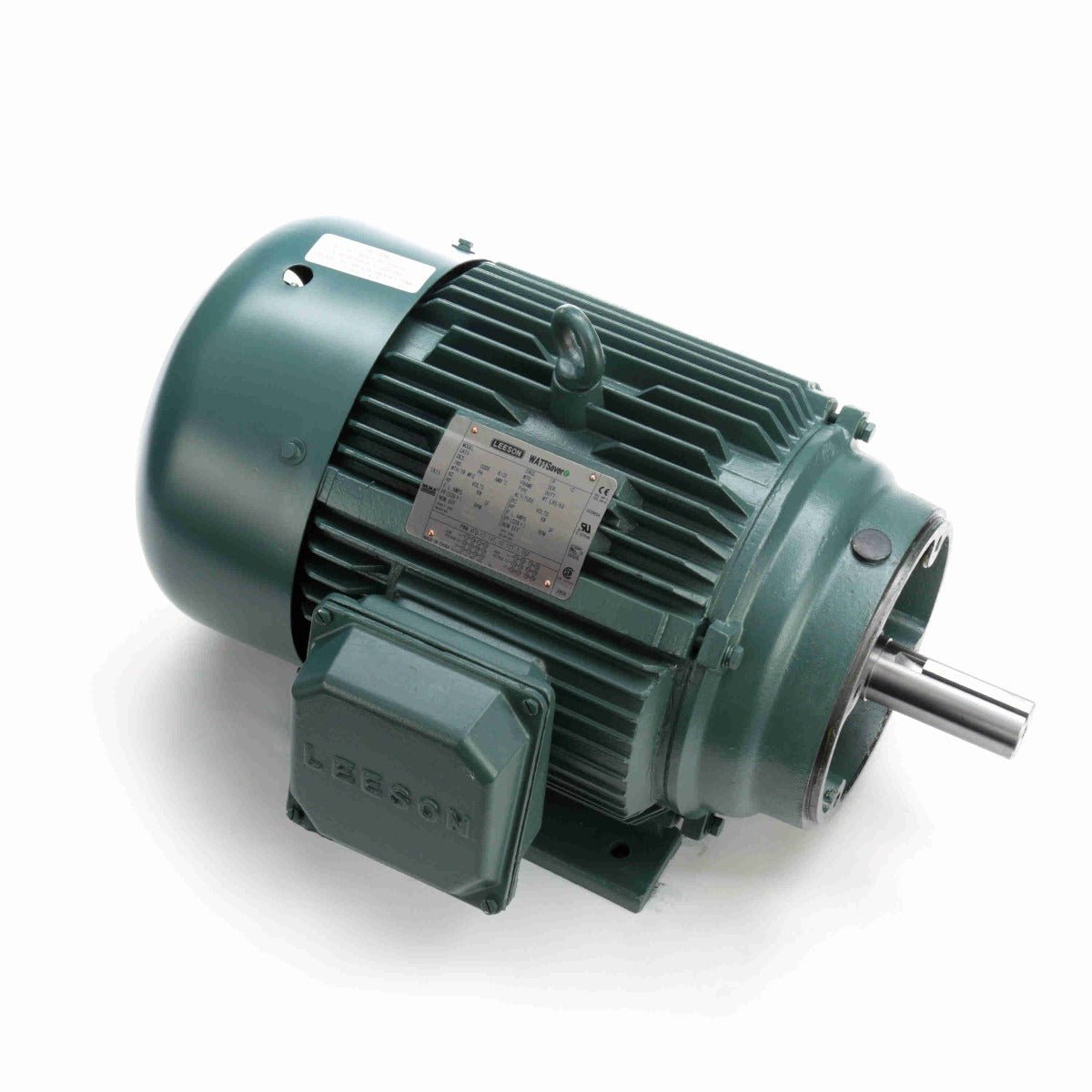

Leeson Model # C254T17FK8
171587.60 Leeson three phase Efficient Motors are durable inverter duty induction motors that are built to last. Designed with a totally enclosed frame for somewhat dirty and wet environments. Long lasting construction with a cast iron body and durable ball bearings. Leeson Efficient Motors meet the most recent EISA federal energy regulations. More features include class F insulation, continuous duty performance, and a three year manufacturer's warranty.
Commonly applications for the 15hp Leeson 171587.60 includes:
Pumps
Compressors
Conveyors
Blowers
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
39-37 |
F.L. Amps |
18.5 |
F.L. Amps |
44/22 |
| S. F Amps |
47.5-45 |
S. F Amps |
22.5 |
S. F Amps |
53.5/26.8 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
11.2 |
|
|
|
|
| Frame |
254TC |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
92.4 |
Eff 75% |
92.4 |
PF |
82.5 |
| UL |
V-INS, CONST UL REC |
CSA |
No |
Bearing OPE |
NONE |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
NONE |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
11.2 |
|
|
|
|
| Frame |
254TC |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91 |
Eff 75% |
|
PF |
84.5 |
| UL |
V-INS, CONST UL REC |
CSA |
No |
Bearing OPE |
NONE |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
NONE |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
284 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
ECO-0060705 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
SS622044LE |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T12904005 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card
|
