Manuf Model # C184T17FK35

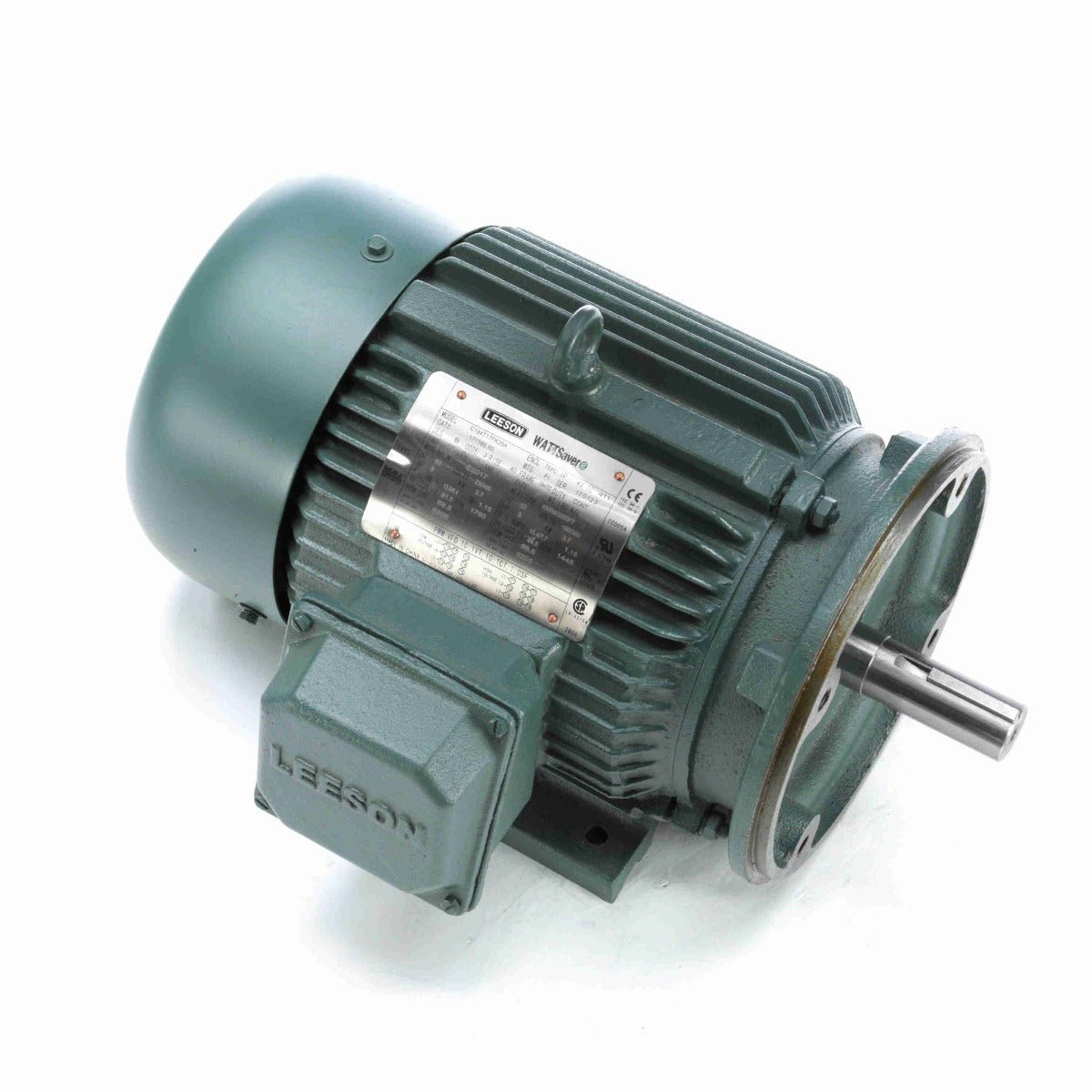

Leeson 1171566.60 is a premium efficient, inverter rated induction motor that is built to last. Designed with a totally enclosed frame for more dirty and wet applications, this electrical motor has a NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment. Leeson is well know for durable construction; this unit features a cast iron body and long-lasting shielded ball bearings. Leeson premium AC motors meet EISA federal energy regulations; have class F insulation for additional winding protection; continuous duty performance; and comes with a 3 year factory warranty.
From manufacturing to the farm, this 5hp Leeson motor can be used for:
Pumps
Compressors
Conveyors
Blowers
General Purpose Applications
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
13.8-12.8 |
F.L. Amps |
6.4 |
F.L. Amps |
15.4/7.7 |
| S. F Amps |
15.8-14.6 |
S. F Amps |
7.3 |
S. F Amps |
17.6/8.8 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
3.7 |
|
|
|
|
| Frame |
184TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
8 |
Eff 75% |
89.5 |
PF |
81.5 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
3.7 |
|
|
|
|
| Frame |
184TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
84.5 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
109 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
93458-E-LN-FHKLQ-B-B |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
B-SS622293 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T08704011 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
