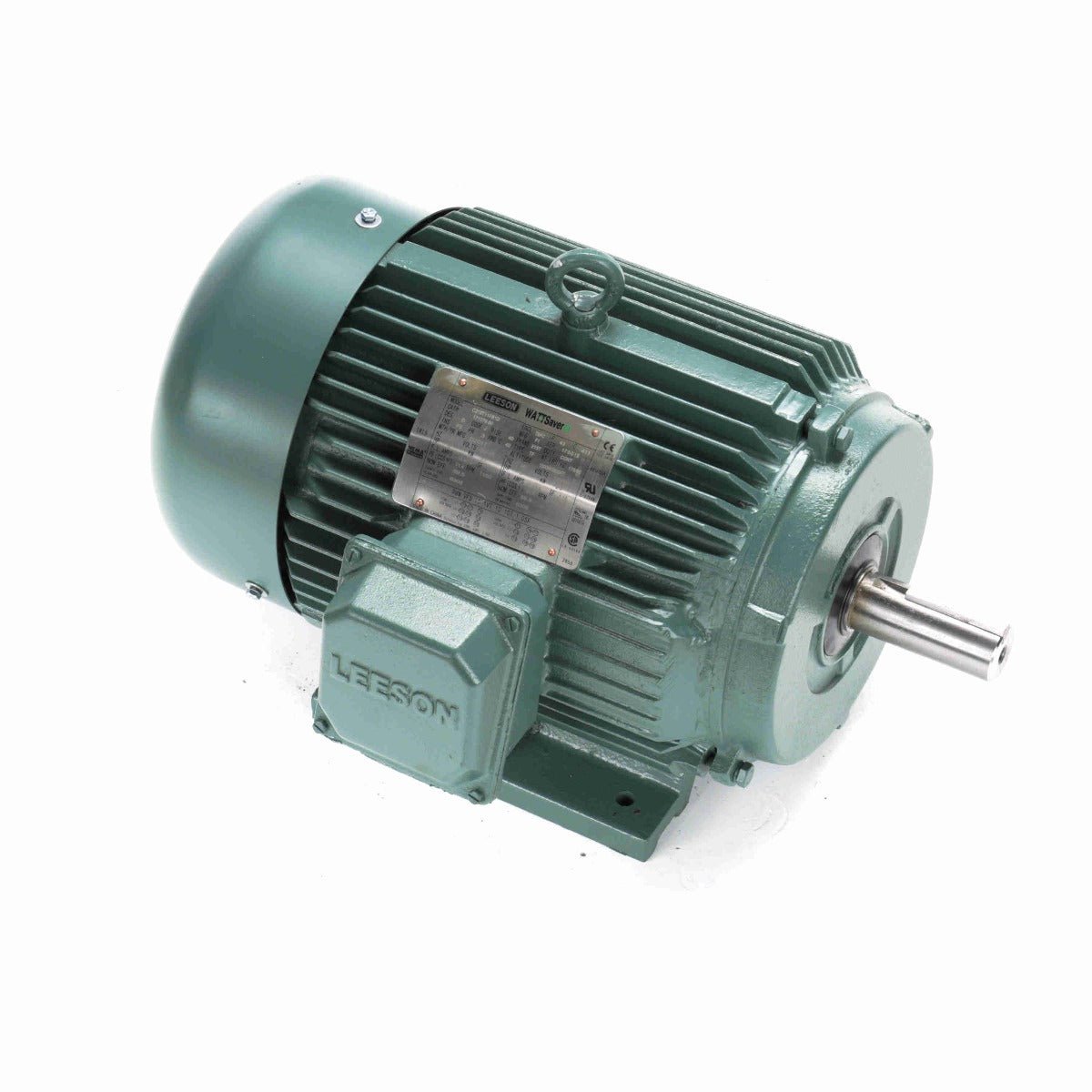

Leeson Model # C215T11FB1
171379.60 Leeson totally enclosed premium efficient electric motors are quality machines with cast iron body and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. Three phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. More features include:
- Rigid base
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
15.3-14.4 |
F.L. Amps |
7.2 |
F.L. Amps |
11.8/5.9 |
| S. F Amps |
16.2 |
S. F Amps |
8.1 |
S. F Amps |
12.8/6.4 |
|
| RPM |
1200 |
Hertz |
60 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
3.7 |
|
|
|
|
| Frame |
215T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
89.5 |
Eff 75% |
89.5 |
PF |
71.4 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1000 |
Hertz |
50 |
|
|
| HP |
3 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
2.24 |
|
|
|
|
| Frame |
215T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
|
Eff 75% |
|
PF |
|
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
176 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
081024 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
16953660 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T10706002 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
VERIFY |
Test Card
|
