Manuf Model # C286T17DK5

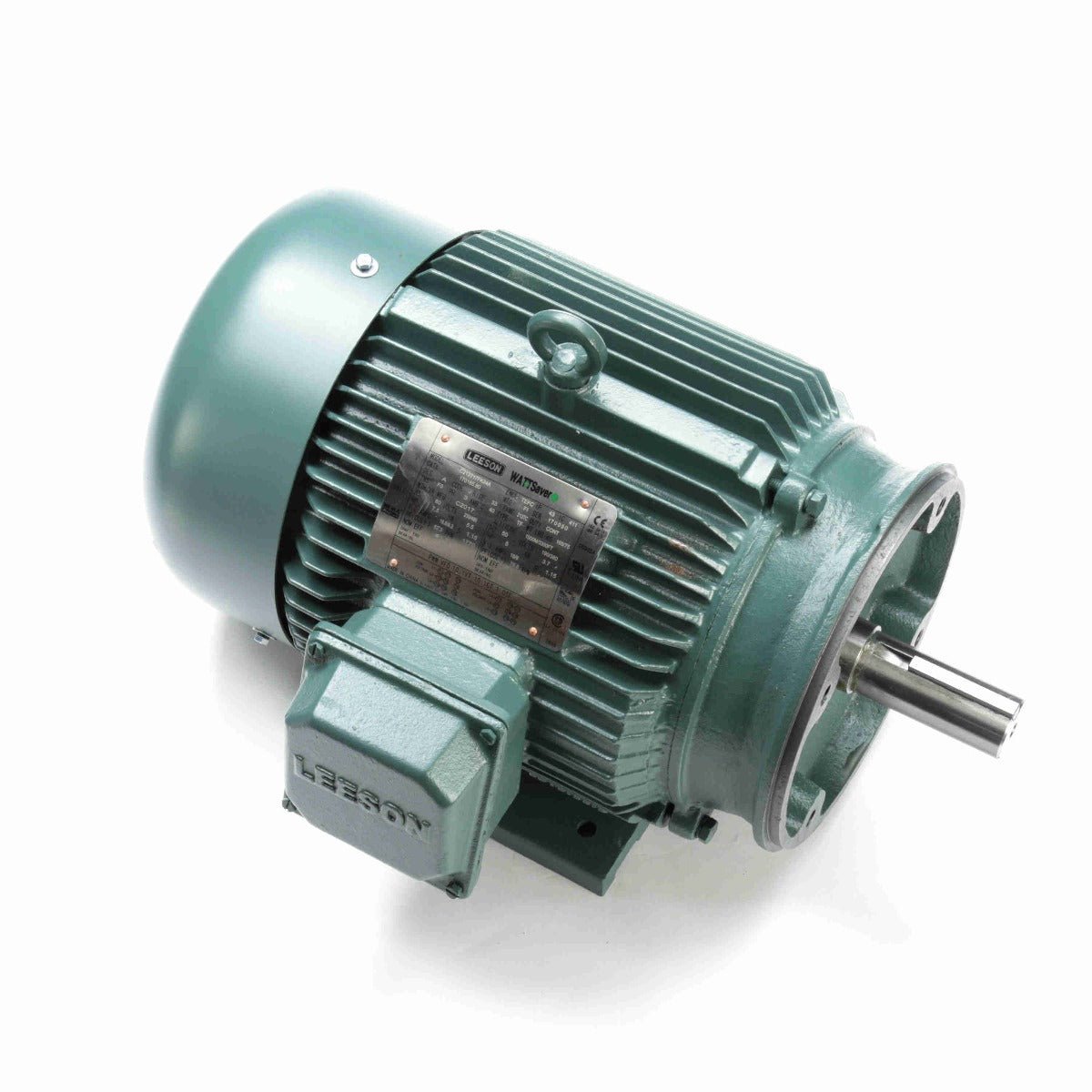

170165.60 Leeson three phase premium energy efficient electric motors are made with a cast iron body and exceed NEMA design B performance. Use for a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers. More 7.5 hp motor features:
C Face
Durable ball bearings
Class F Insulation
3 year warranty
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
18.6 |
F.L. Amps |
9.3 |
F.L. Amps |
16/8 |
| S. F Amps |
22.4 |
S. F Amps |
11.2 |
S. F Amps |
17.6/8.8 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
7 1/2 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
5.6 |
|
|
|
|
| Frame |
213TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91.7 |
Eff 75% |
91.7 |
PF |
82 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
3.7 |
|
|
|
|
| Frame |
213TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91 |
Eff 75% |
|
PF |
78.8 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
155 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
93458-E-LN-FHKLQ-B-B |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
B-SS622294 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T10704023 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
