170159.60 Leeson 10HP TEFC Motor C215T34FB47

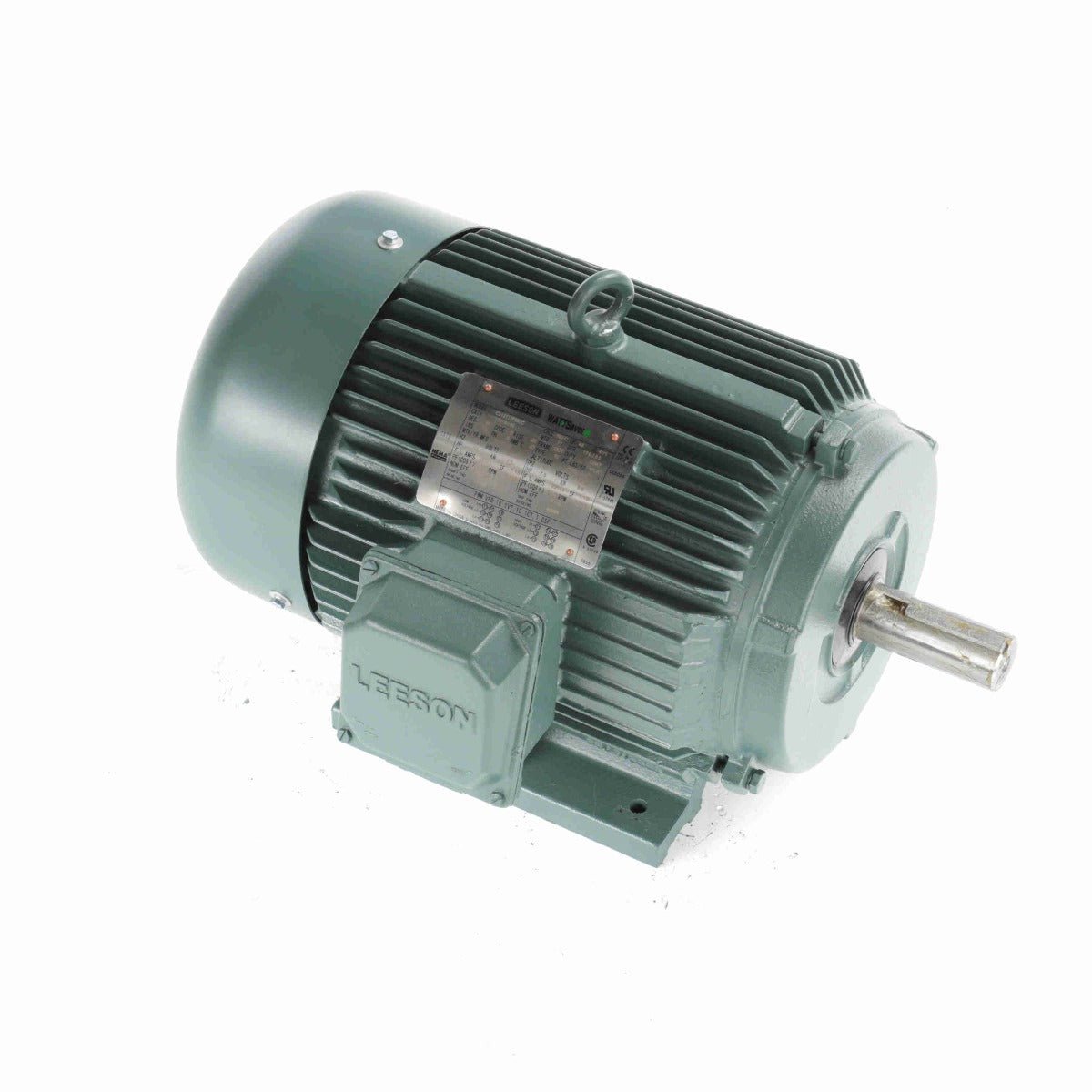

170159.60 Leeson AC Motor 10HP 3600RPM 215T TEFC 208-230/460Volt 3 Phase

In stock
SKU: 170159.6
$1,115.75
$1,785.20 Sale $1,115.75

Product details

  • SKU 170159.6
  • Brand Leeson
  • Phase 3
  • RPM 1801-3600
  • HP / KW 10
  • Application General Purpose
  • Frame 213/5T
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V

Share

Description Reviews

Leeson Model # C215T34FB47

170159.60 Leeson three phase premium energy efficient electric motors are made with cast iron construction and a rigid base.  Use for a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers. More totally enclosed motor features include:



  • Double shielded ball bearings
  • Continuous duty
  • Exceeds NEMA design B performance
  • 3 year warranty on Efficient Motors



Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.



Engineering Data
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 26-23 F.L. Amps 11.5 F.L. Amps 20.6/10.3
S. F Amps 30-26.4 S. F Amps 13.2 S. F Amps 23.4/11.7
RPM 3600 Hertz 60
HP 10 Duty CONTINUOUS TYPE TF
KW 7.5
Frame 215T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 88.5
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
RPM 3000 Hertz 50
HP 7 1/2 Duty CONTINUOUS TYPE TF
KW 5.6
Frame 215T Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code H
Insul Class F Protection NOT Therm.Prot.
Eff 100% 91.7 Eff 75%   PF 89.5
UL Yes CSA Yes Bearing OPE 6306
CC Number CC005A CE Yes Bearing PE 6308
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 181 LB Enclosure TEFC Lubrication VERIFY
Nameplate 081024 Mounting RIGID Rotation REV
Assembly   Shaft Dia.   Ext. Diag. 005010.01
Cust Part No   Outline 16953660 Ext. Diag2
Packaging 307996.01     Winding T10702022
Carton Label INDIVIDUAL     GROUP: 3
Iris   Paint VERIFY Test Card
