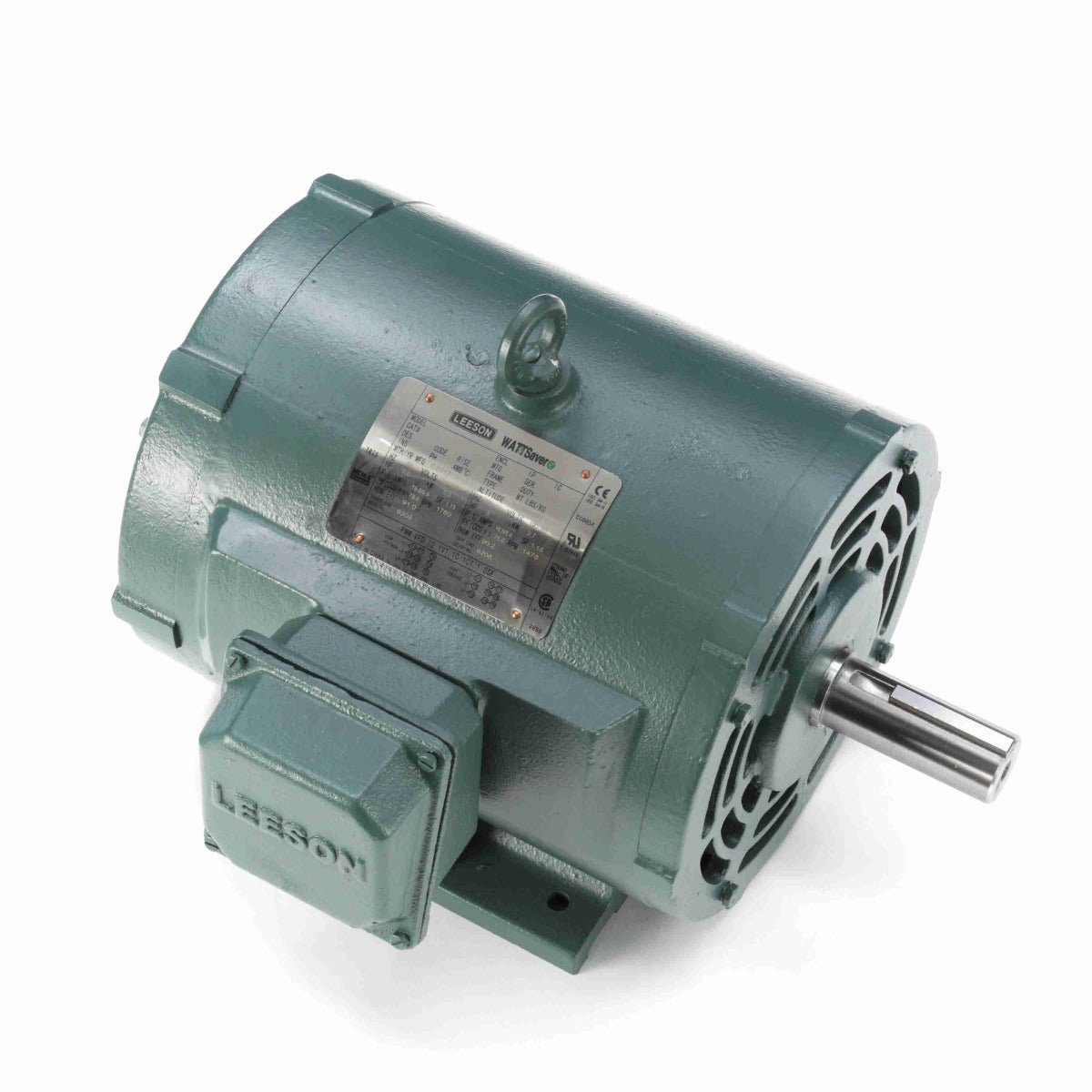

Leeson Model # C213T17DB44
170142.60 Leeson three phase energy efficient electric motors are made with a rolled steel body and exceed NEMA design B performance. These dripproof motors are used for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.
More features include:
- Double shielded ball bearings
- Rigid base
- Continuous duty
- 3 year warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
20.6-19.8 |
F.L. Amps |
16.8 |
F.L. Amps |
9.9/8.4 |
| S. F Amps |
21.6 |
S. F Amps |
10.8 |
S. F Amps |
18.2/9.1 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
7 1/2 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
5.6 |
|
|
|
|
| Frame |
213T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91 |
Eff 75% |
|
PF |
78 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6208 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
163 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
081024 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
1 3/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
16954960 |
Ext. Diag2 |
|
| Packaging |
307997.99 |
|
|
Winding |
T10704007 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
VERIFY |
Test Card
|
