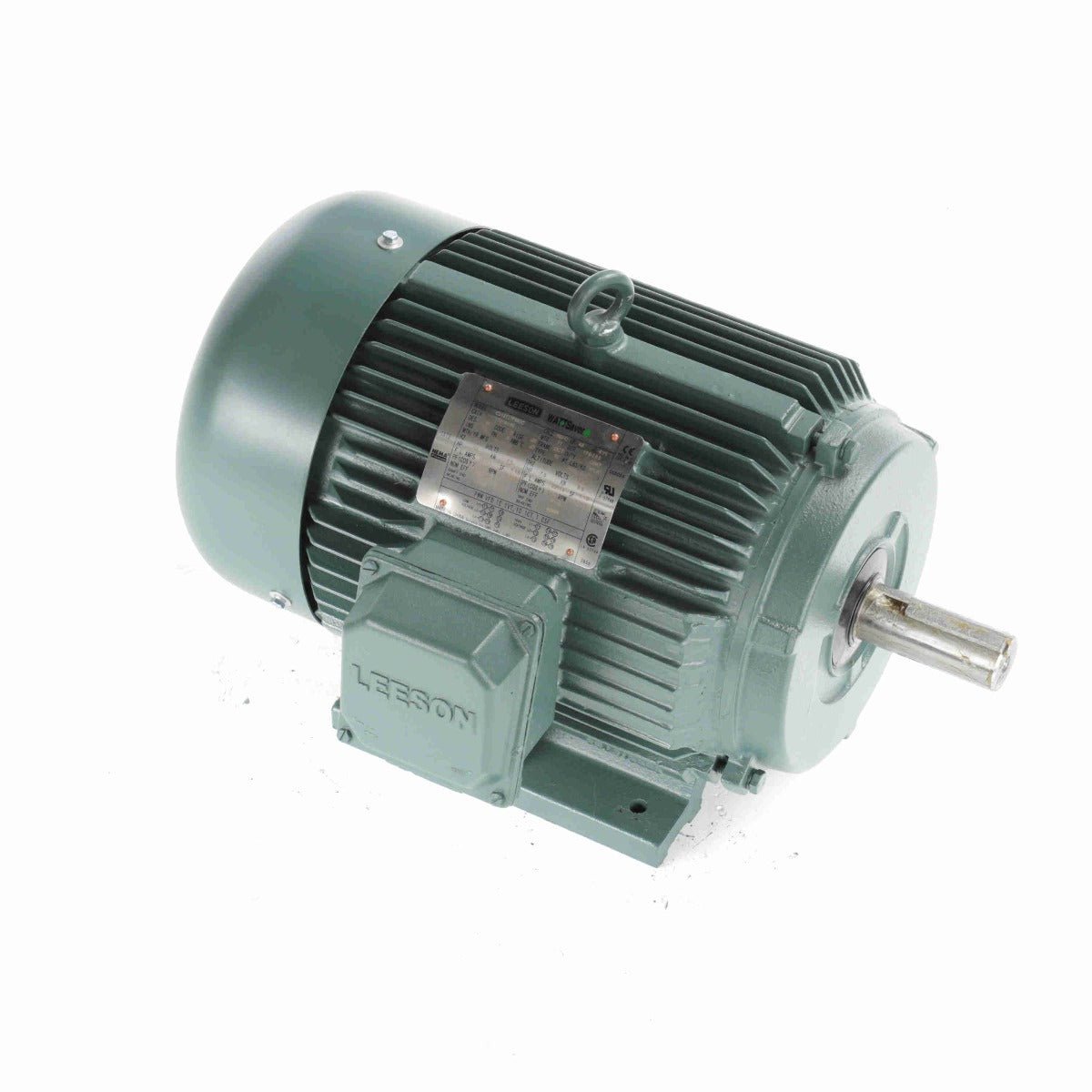

Leeson Model # C215T17FB43
170140.60 Leeson Premium Efficient electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Leeson three phase electric motors are quality machines with cast iron construction and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
27-25 |
F.L. Amps |
12.5 |
F.L. Amps |
23/11.5 |
| S. F Amps |
28 |
S. F Amps |
14 |
S. F Amps |
25.8/12.9 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
10 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
7.50 |
|
|
|
|
| Frame |
215T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
91.7 |
Eff 75% |
91.7 |
PF |
81.6 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
7 1/2 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
5.60 |
|
|
|
|
| Frame |
215T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
|
Eff 75% |
|
PF |
|
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6306 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6308 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
196 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
081024 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
A-EE7308T |
| Cust Part No |
|
Outline |
16953660 |
Ext. Diag2 |
|
| Packaging |
307997.99 |
|
|
Winding |
T10704006 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
VERIFY |
Test Card
|
