Manuf. Model # C284T11DB7

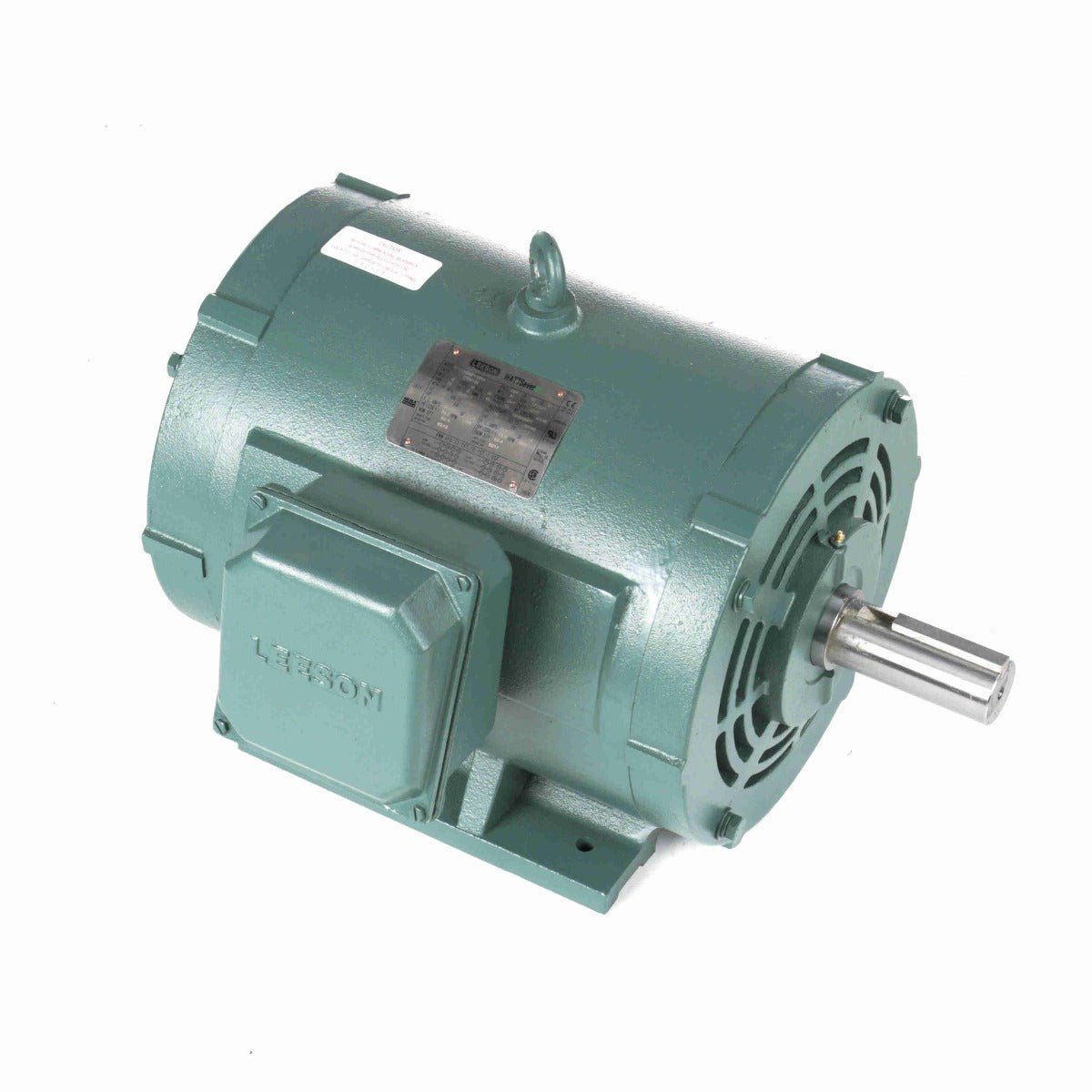

170067.60 Leeson three phase premium energy efficient electric motors are made with a rolled steel body and exceed NEMA design B performance. These dripproof motors are used for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.
More great features include:
- Double shielded ball bearings
- Rigid base
- Continuous duty
- 3 year warranty on Efficient Motors
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
42.2-39.4 |
F.L. Amps |
19.7 |
F.L. Amps |
33.4/16.7 |
| S. F Amps |
44.6 |
S. F Amps |
22.3 |
S. F Amps |
37.2/18.6 |
|
| RPM |
1200 |
Hertz |
60/50 |
|
|
| HP |
15 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
11.2 |
|
|
|
|
| Frame |
284T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
92.4 |
Eff 75% |
|
PF |
76.7 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6211 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6312 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
445 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
081023 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
1.875 IN |
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
16955260 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T14506015 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
VERIFY |
Test Card
|
