Manuf. Model # C284T34FB5

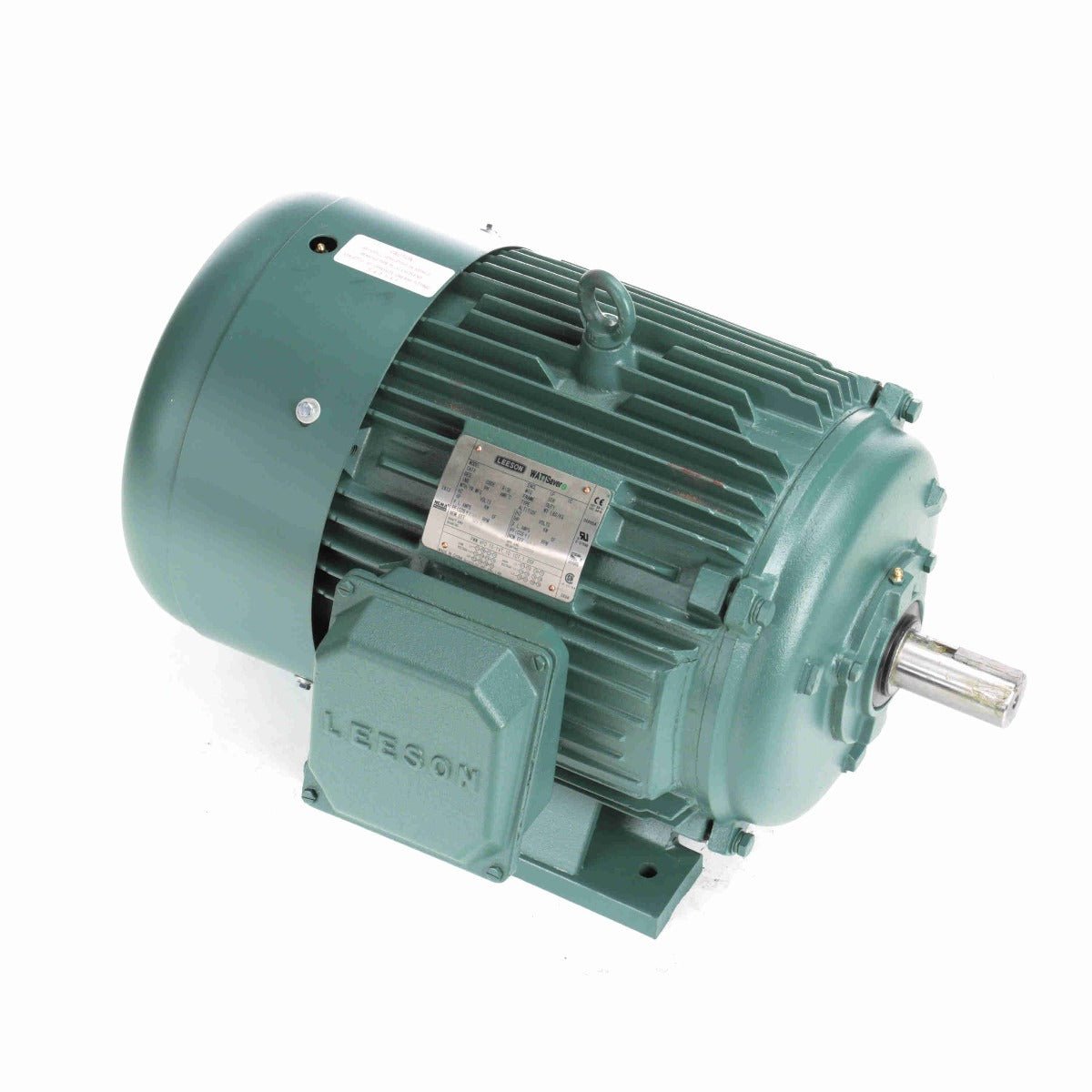

170035.60 Leeson three phase premium efficient electric motors are quality machines with cast iron construction and durable ball bearings. Leeson totally enclosed electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. These motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
63-56.5 |
F.L. Amps |
28.3 |
F.L. Amps |
53.5/26.8 |
| S. F Amps |
72-65 |
S. F Amps |
32.5 |
S. F Amps |
62/31 |
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
25 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
18.7 |
|
|
|
|
| Frame |
284TS |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
93 |
Eff 75% |
|
PF |
88 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6309 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6311 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
3000 |
Hertz |
50 |
|
|
| HP |
20 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
14.9 |
|
|
|
|
| Frame |
284TS |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
93 |
Eff 75% |
|
PF |
91 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6309 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6311 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
393 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
93458-E-LN-FHKLQ-A-X-B |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
16954060 |
Ext. Diag2 |
|
| Packaging |
307996.01 |
|
|
Winding |
T14502016 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
1 |
| Iris |
|
Paint |
VERIFY |
Test Card
|
